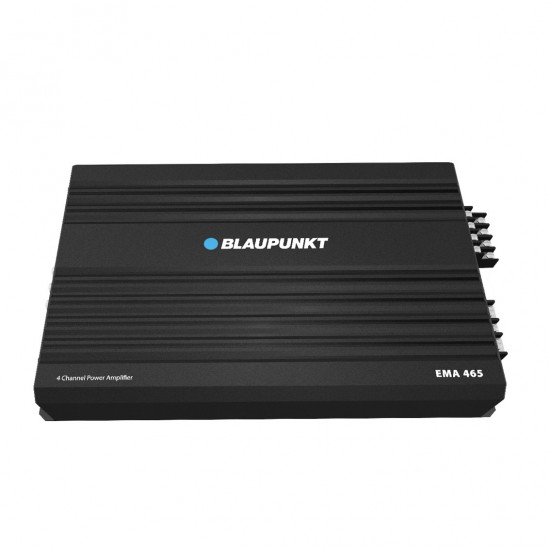

BLAUPUNKT EMA 465 4 / 2 / 1 Channel Class A/B Amplifier RMS 60W x 4 at 4 ohm

Blaupunkt EMA 465 4/2/1 Channel Power Amplifier is the ultimate amplifier for any car to boost the sound system for uninterrupted music listening. The EMA 465 enhances the electrical signal transmission and with such intricate features, it is designed to take audio streaming to the next level. Listening to the radio and music will never be the same again.

Specifications
Voltage Supply: 9 - 15V
Idling Current: 0.56A
Fuse: 25A x 2
Consumption at 2ohms, 14.4V D: 22A (Max Musical Power)
Amplifier Class: Class AB
Channel: 4/2/1
PCB Layer: 1
Max Output Power at 4ohms: 120W x 4
RMS Power 4ohms: 60W x 4
RMS Power 2ohms: 90W x 4
RMS Power 4ohms Bridge: 150W x 2
Pre-in Sensitivity: 200mV - 6V
Signal-To-Noise Ration: 90dB
Frequency Response: 20 - 22kHz
Gain Adjust: 200mV - 3.5V
Bass Boost Frequenct: 55Hz
Bass Boost Level: 0/6/12dB
Total Harmonic Distortion: <0.05%
RCA Output: 2-Channel
Crossover Frequency: 50Hz - 250Hz (L), 120Hz - 3kHz (H)
Dimension (W x H x
