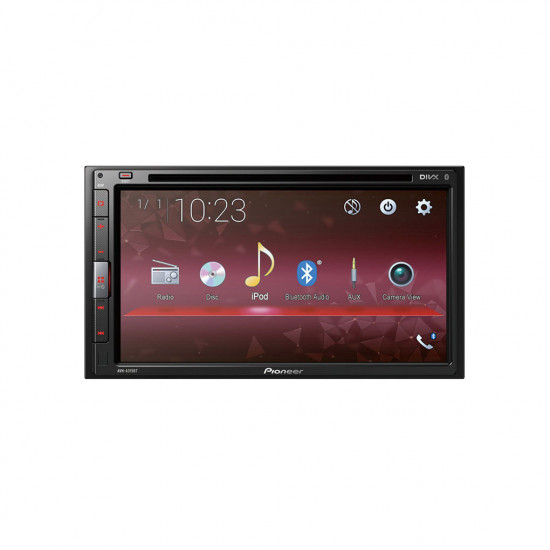

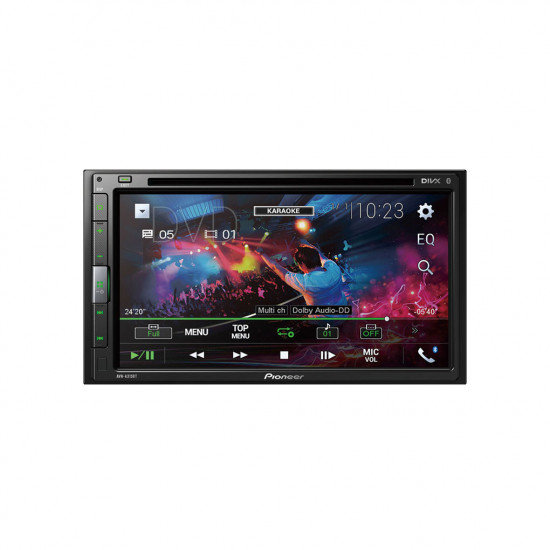

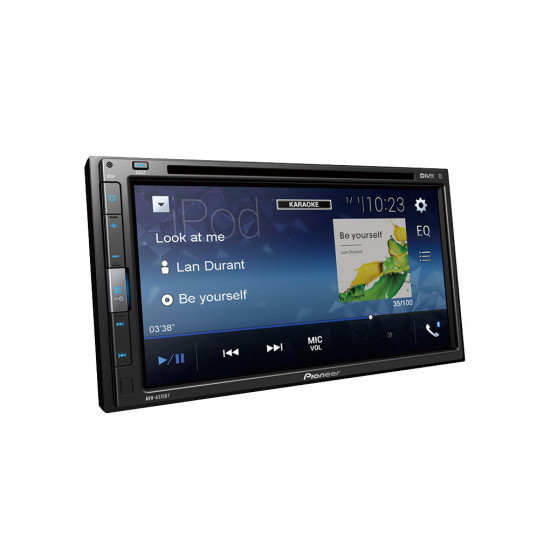

Pioneer AVH-A315BT 6.8" Double DIN Bluetooth DVD CD USB Car Radio AV Receiver

Unparalleled Entertainment Value

Pioneer’s new multimedia receivers offer greater value with the AVH-A315BT and MVH-A215BT. Packed with nifty features such as built-in Bluetooth, advanced interface, and being highly customisable to users’ individual sound and display preferences, bringing more enjoyment to every drive.

Features

Bluetooth®

Pioneer AV Receivers feature built-in Bluetooth ®, which enables hands-free calling and audio streaming. File Browsing can be used through AVRCP 1.5 version of Bluetooth. You can easily search songs in the browsing display. Hands-free calling features new Wideband Speech Hands-Free Profile (HFP 1.6), which nearly doubles the bandwidth for improved reception. Call quality reaches the level of FM reception.

Direct Control for Certain Android Phones (MTP Mode)

Take advantage of a wired USB connection to the receiver. Sound stays clean and clear, file search and access are very quick. Song, artist, time and album displays are user-friendly.

USB Direct Control for iPod/iPhone

You can control the receiver directly from your iPod/iPhone via USB connection

Crossover Setting (HPF/LPF)

To keep transitions between frequency ranges sounding smooth, you can adjust Cutoff Frequency and Cutoff Slope for each HPF and LPF respectively.

13-Band Graphic EQ

13-band EQ adjustment allows you to fine-tune sound quality just as you like it.

Manual Time Alignment

By using Time Alignment function, you can adjust speaker output timing, so that sound from all speakers reaches the driver's ears in perfect sync.

Superior Sound (Bass Boost)

Enjoy more impactful bass with 6 setting adjustments.

Easy Device Switching

Switching among the smartphones is as simple as touching the appropriate button on the receiver display when each of up to three smartphones in the car is paired with the receiver via built-in Bluetooth ® function.

Superior Customisability

More wall paper selections let you arrange an AV receiver's display as you like. *User's photo image data cannot be registered. You can also select among five (Blue/Red/Amber/Green/White) colours for the display and 112 different colours to match unit illumination to the dash.

Improved Graphic Quality

One pixel of a picture image is equalized to one dot of a display, for higher-quality picture representation.

Parking Assistance

Back-up Camera Input-Ability to add a rear-facing camera for assistance with rear visibility. *Camera is optional.

Specifications

Video Format : MPEG 1, 2, 4, AVI, MOV, DivX

Audio Format : MP3 / WMA / ACC / WAV

AUX Input (Mini-Jack) : Rear

USB Interface : Rear

Control for iPod / iPhone*1 : Yes

Direct Control for Certain Android Phones*2
Yes

AppRadio Mode*1 *2
No

SD / SDHC Memory Card Slot
No

Bluetooth : Yes

MIXTRAX*3 :No

Dual Zone Audio / Video : No

Auto EQ*4 : No

Advanced Sound Retriever : No

Time Alignment : Manual

Password Security : No

Back-Up Camera Ready : Yes

DIN Size : 2-DIN

Display : 6.8" WVGA

Preout : 3 (2V)

Playback : DVD/CD/USB

(1) Optional cable CD-IU201V is required to utilize direct control.

For iPhone 4S or 5th Generation iPod Touch. Optional cable CD-IU52 is recommended

For iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6 Plus, iPhone 6, iPhone 6s, iPhone 6s Plus and iPhone 5s.

CD-IU52 and CD-IU201V are sold separately.

Notes: Receiver may not operate other iPod or iPhone models. Compatibility with unit and operations may vary depending on the software version.
