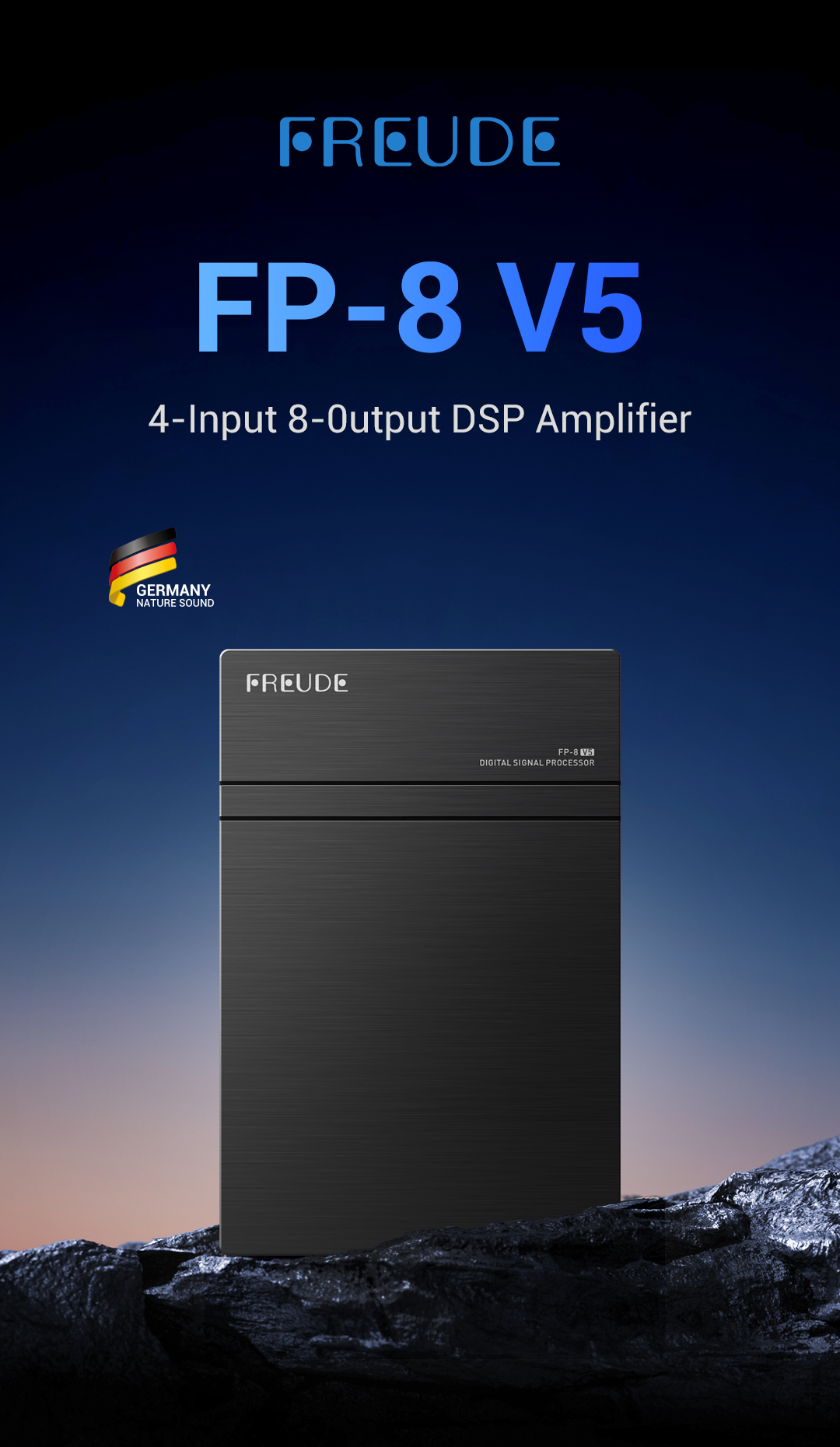

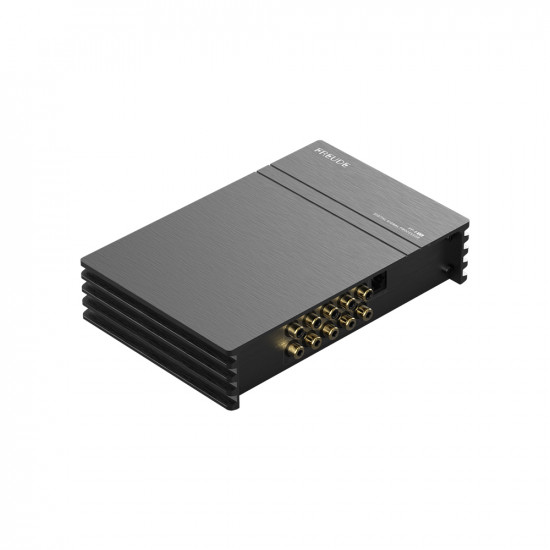

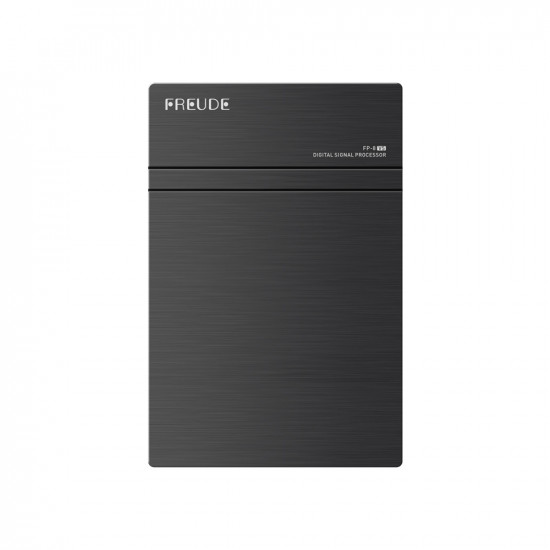

FREUDE FP-8V5 8-Channel Digital Signal Processor with 4-Channel Amplifier DSP 4 x 40W

FP-8 V5

8ch DSP with 4ch Amplifier

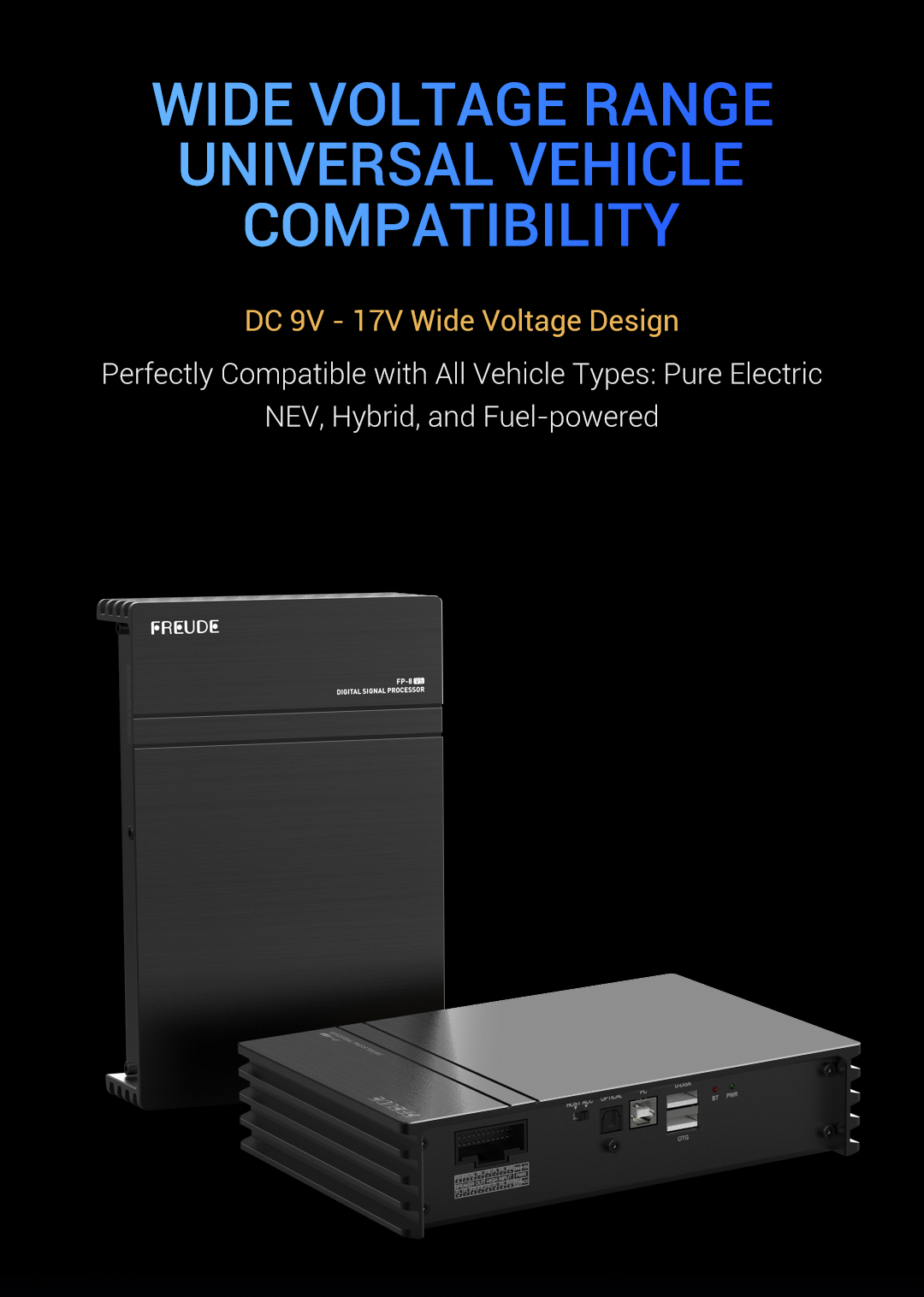

• Wide voltage design: 9V – 17V DC

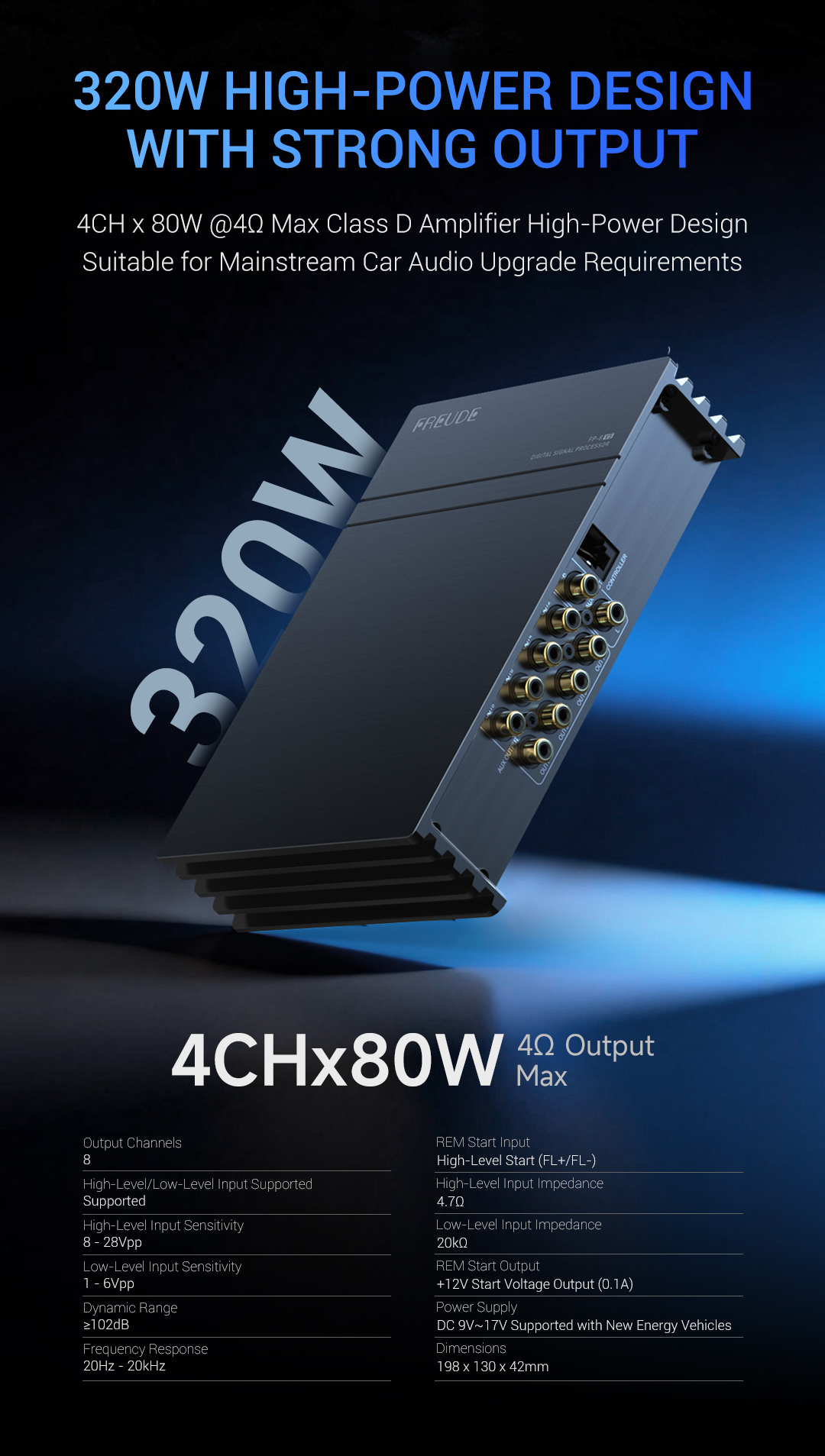

• Built-in Class D amplifier: Max Power up to 4 × 80W

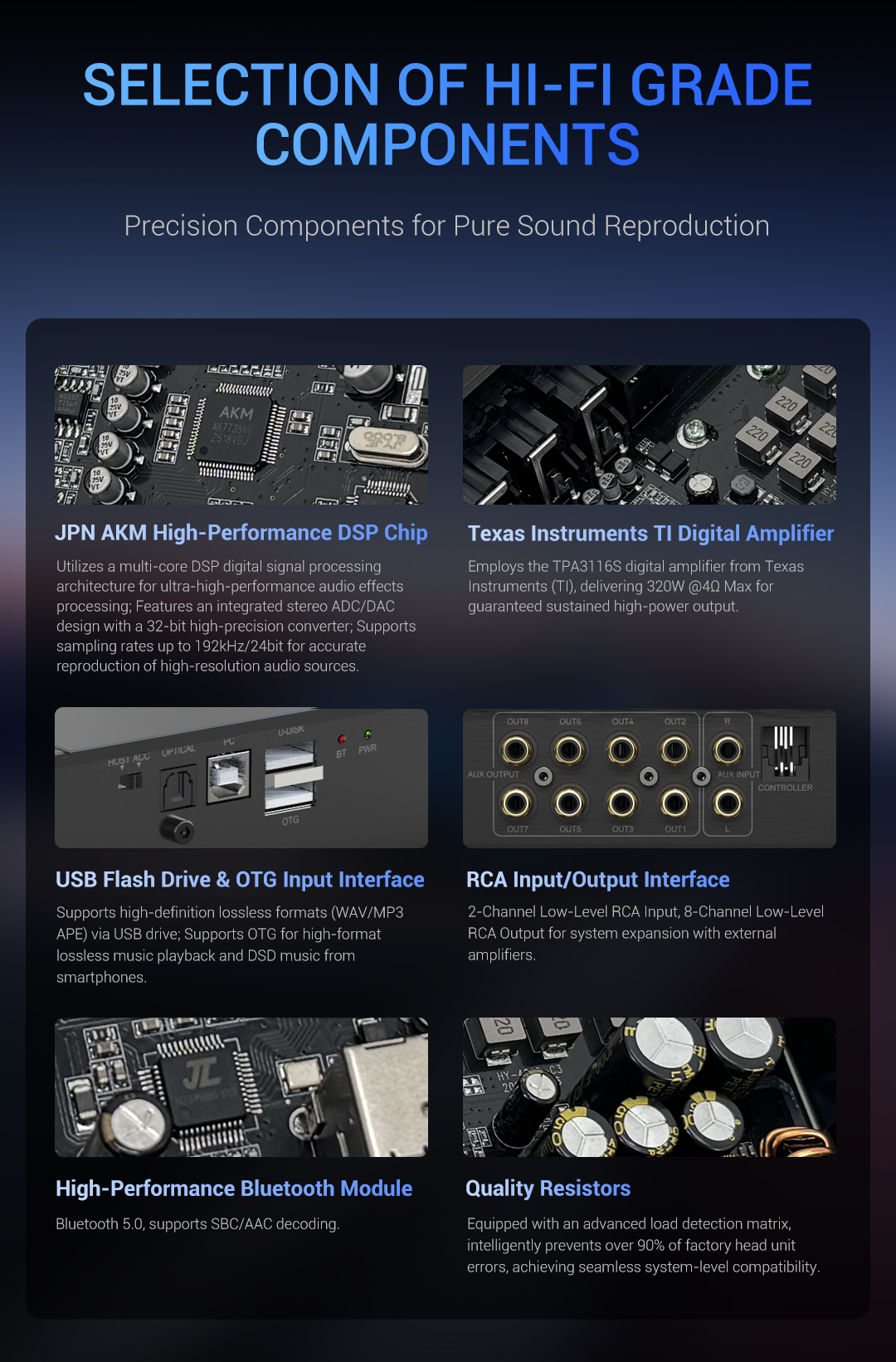

• High-performance AKM DSP chip from Japan
• Texas Instruments (TI) digital amplifier ensuring sustained high-power output
• USB flash drive and OTG input interface: fully supports lossless audio formats via USB flash drive

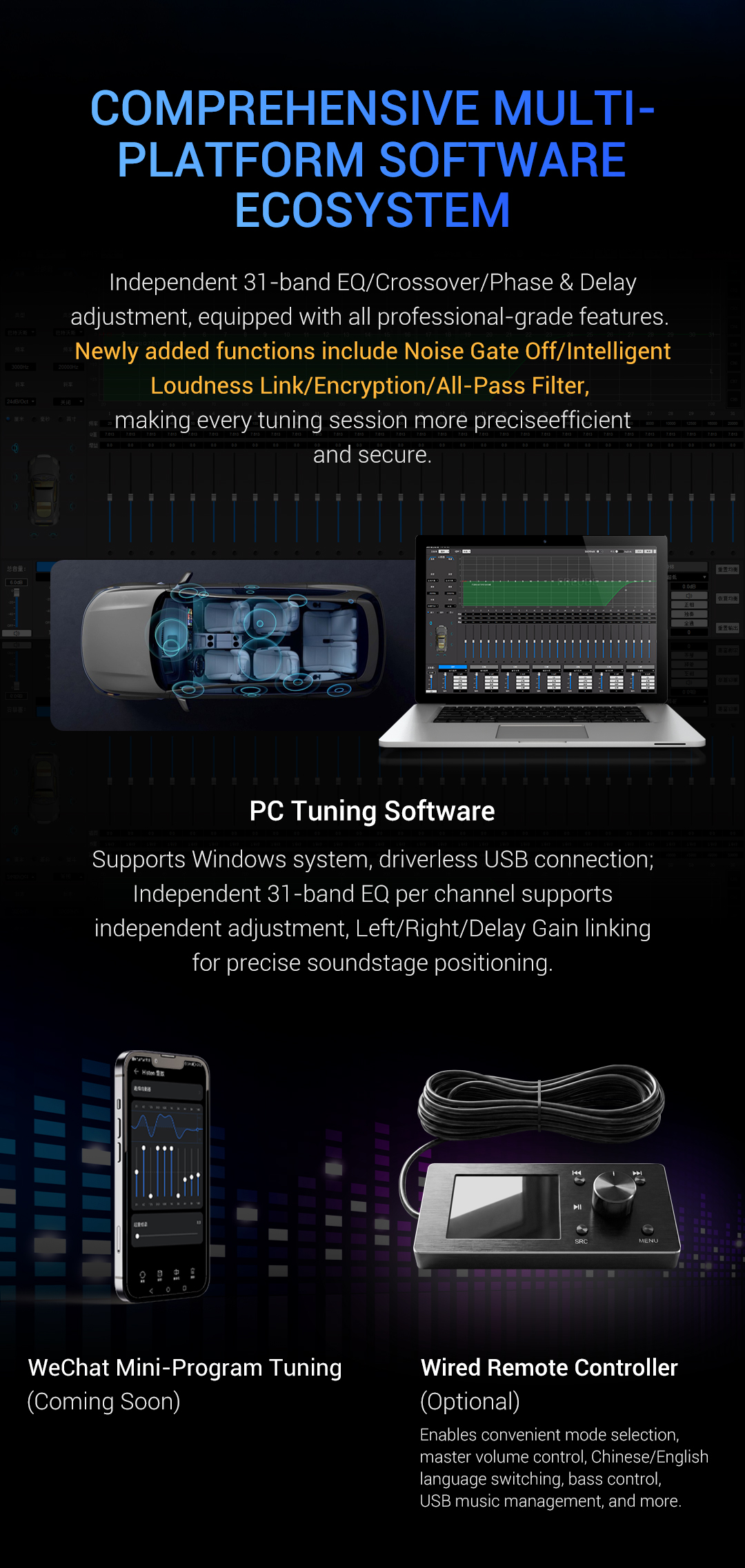

• PC tuning -- AUDIO ARCHITECT
• Plug-and-play, non‑destructive installation

Description

• Wide voltage design: 9V – 17V DC
• Built-in Class D amplifier: Max Power up to 4 × 80W
• High-performance AKM DSP chip from Japan
• Texas Instruments (TI) digital amplifier ensuring sustained high-power output
• USB flash drive and OTG input interface: fully supports lossless audio formats via USB flash drive
• PC tuning -- AUDIO ARCHITECT
• Plug-and-play, non‑destructive installation

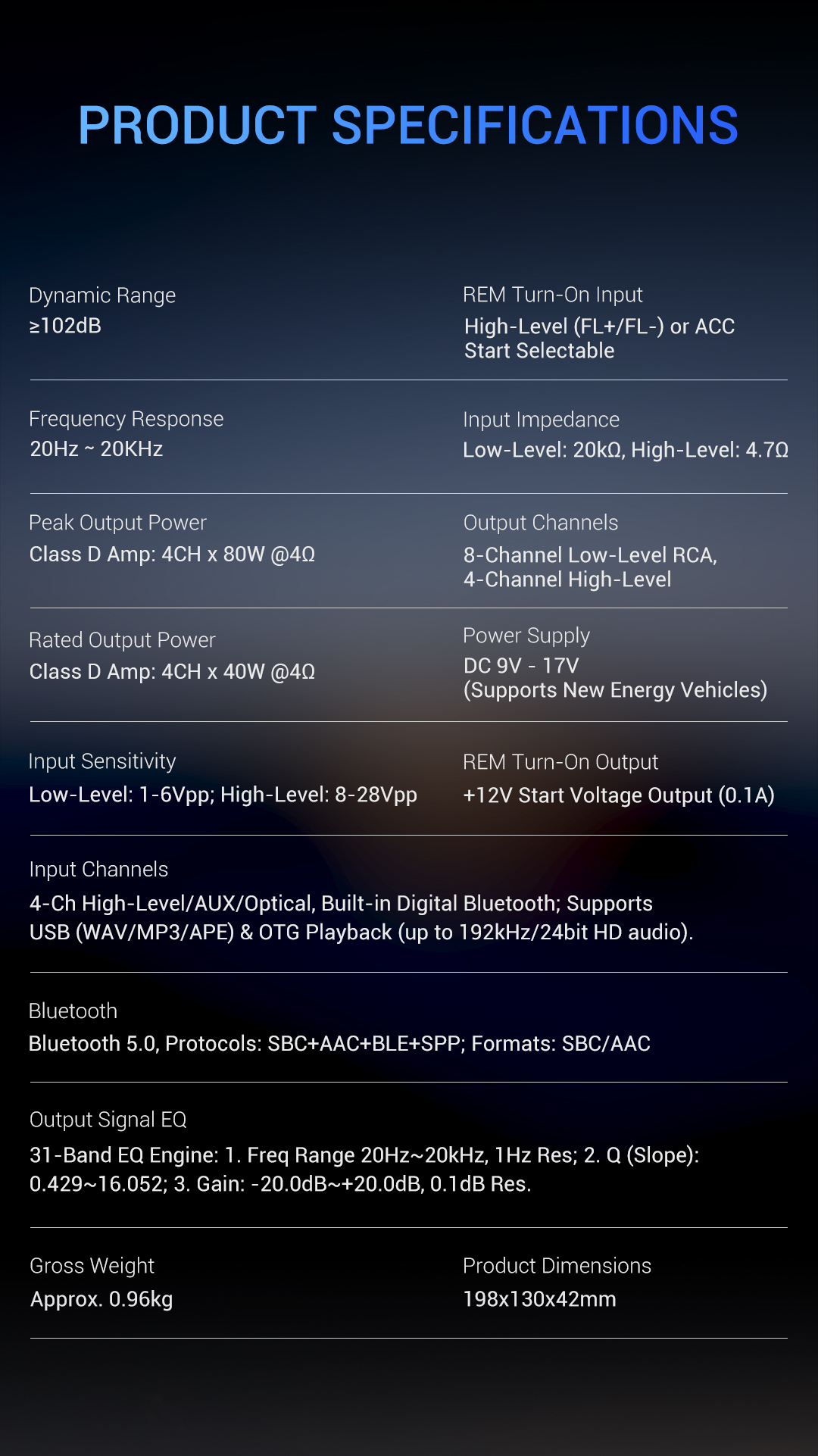

Model : FP-8 V5
Type :8 ch DSP with 4 ch Amplifier
Power :DC 9 V～17 V

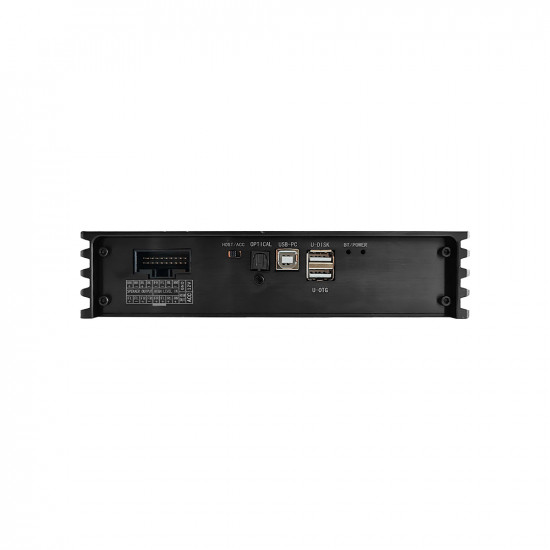

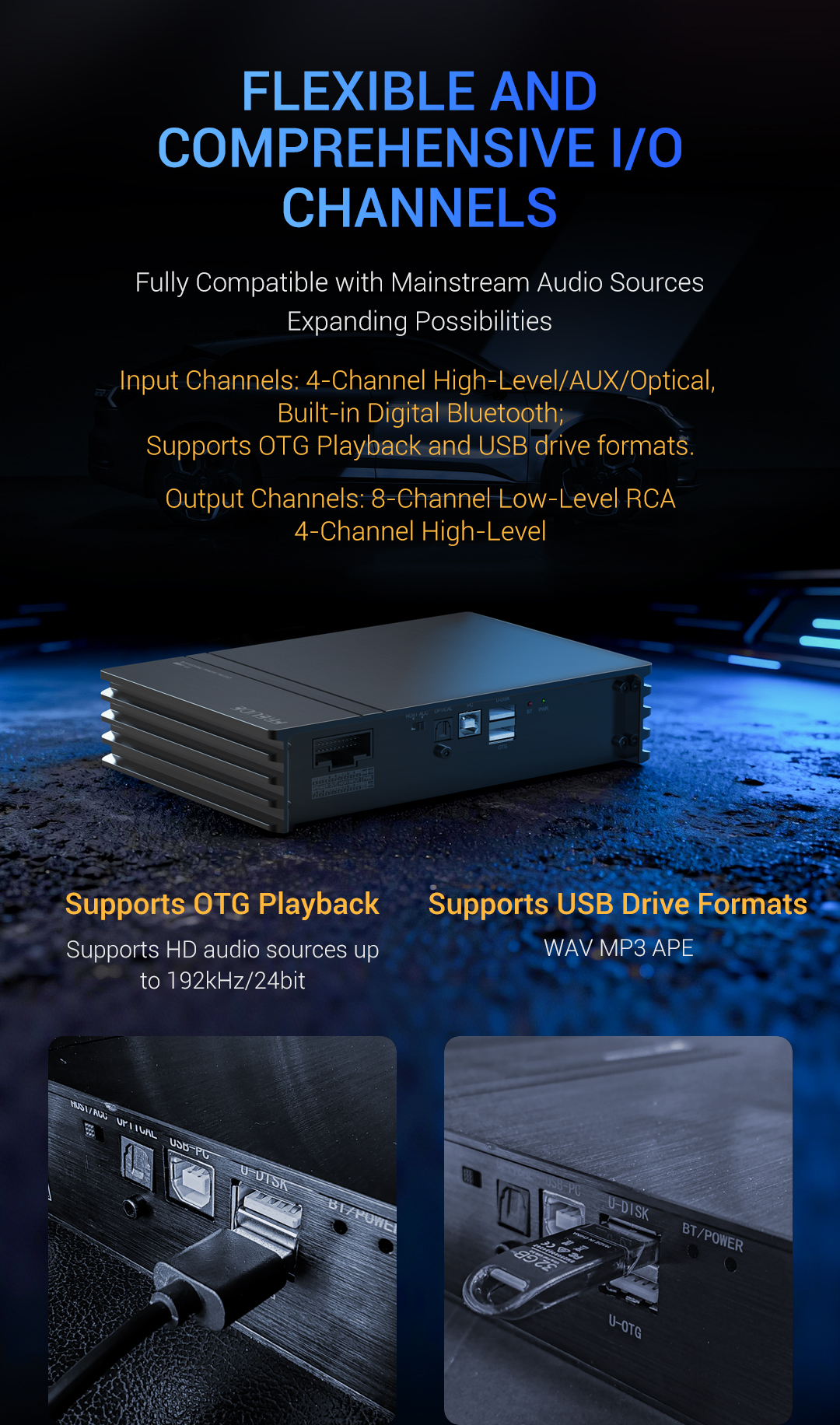

Input Signal Type :4 ch high level, 2 ch Low Level, Optical Fibre, Digital BT, USB, OTG
Dynamic Range :≥102 dB
S/N : ≥98 dB
Frequency Response : 20 Hz ~ 20k Hz
Max Power : 4 x 80 W
Nom Power :4 x 40 W

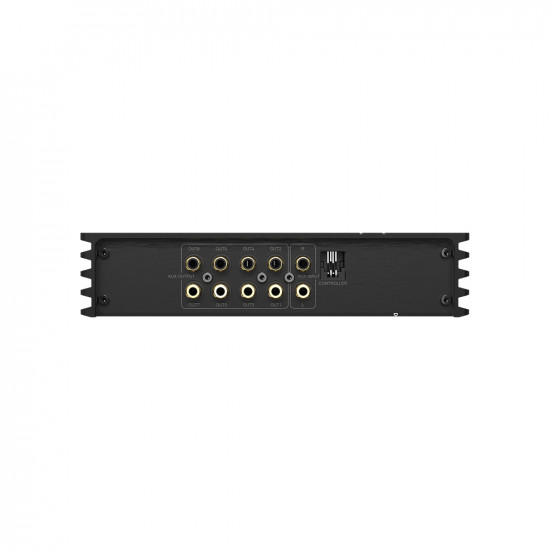

Output Signal Type : 8 ch Low Level Output, 4 ch High Level Output
Output Signal EQ : 31 Levels EQ
Net Weight : 0.96 kg
Dimension(LxWxH) : 198 x 130 x 42 mm
