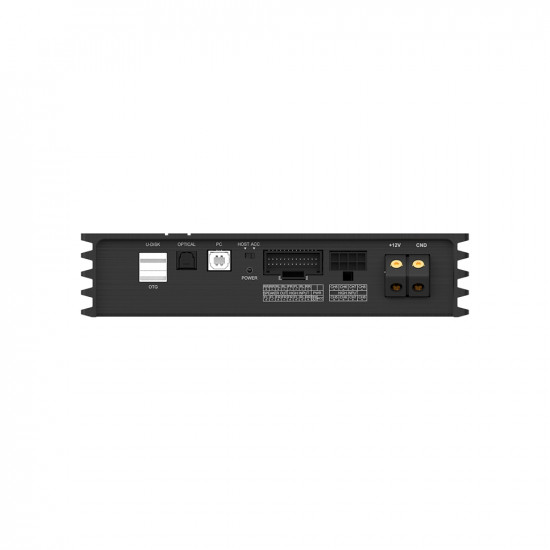

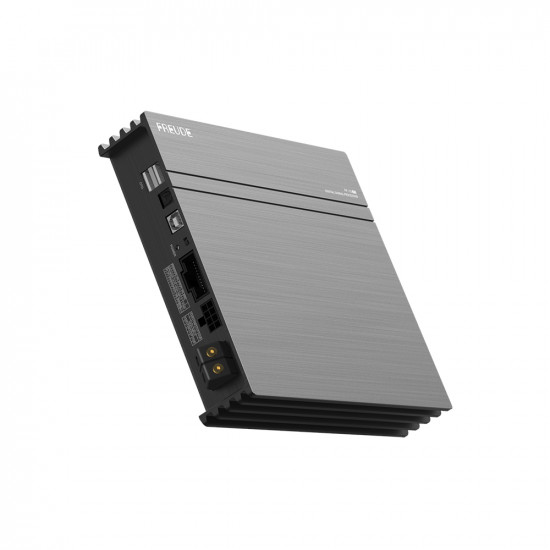

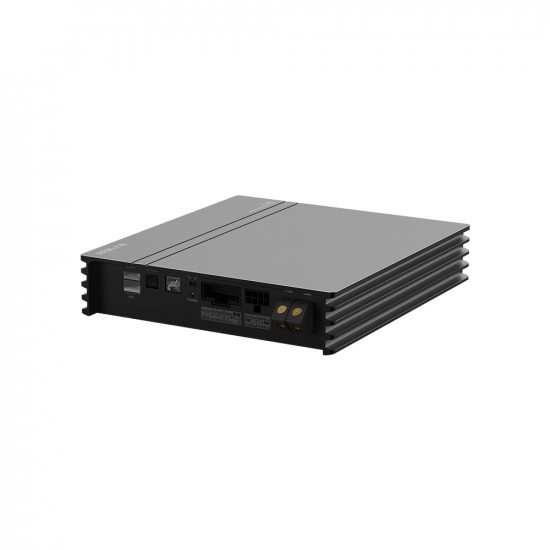

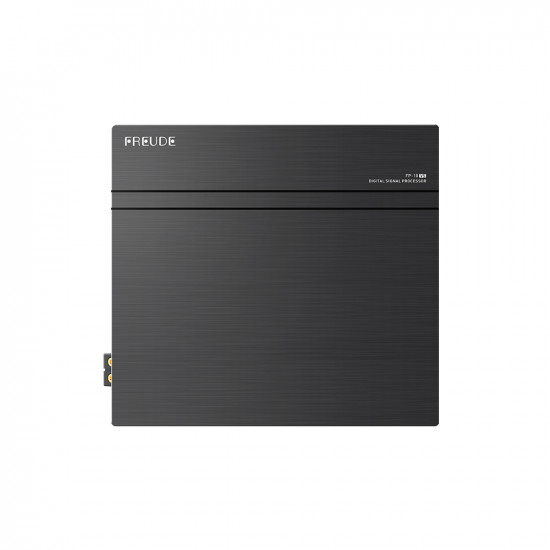

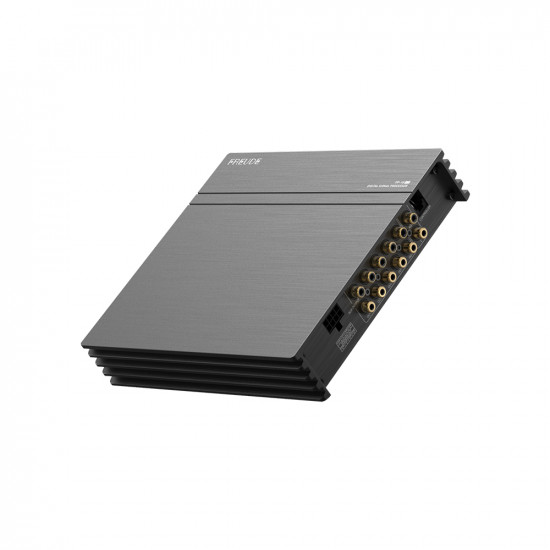

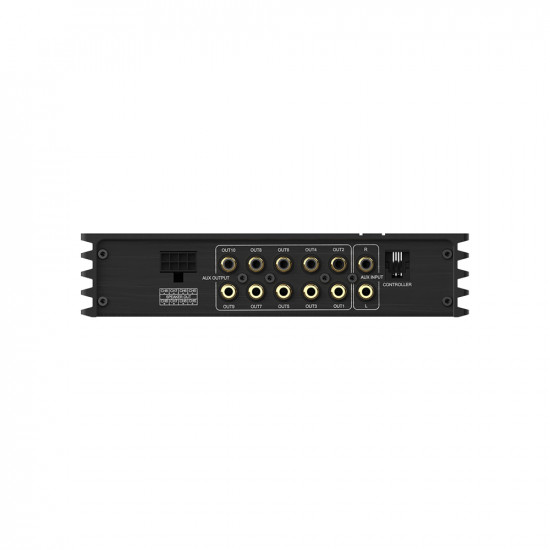

FREUDE FP-10V5 10-Channel Digital Signal Processor with 8-Channel Amplifier DSP 8 x 40W

FP-10 V5

10ch DSP with 8ch Amplifier

• Wide voltage design: 9V – 17V DC
• Built-in Class D amplifier: Max Power up to 8 × 80W
• High-performance AKM DSP chip from Japan
• Texas Instruments (TI) digital amplifier ensuring sustained high-power output
• USB flash drive and OTG input interface: fully supports lossless audio formats via USB flash drive
• PC tuning -- AUDIO ARCHITECT
• Plug-and-play, non‑destructive installation

Description

• Wide voltage design: 9V – 17V DC
• Built-in Class D amplifier: Max Power up to 8 × 80W
• High-performance AKM DSP chip from Japan
• Texas Instruments (TI) digital amplifier ensuring sustained high-power output
• USB flash drive and OTG input interface: fully supports lossless audio formats via USB flash drive
• PC tuning -- AUDIO ARCHITECT
• Plug-and-play, non‑destructive installation

Model : FP-10 V5
Type : 10 ch DSP with 8 ch Amplifier
Power : DC 9 V～17 V
Input Signal Type : 10 ch high level, 2 ch Low Level, Optical Fibre, Digital BT, USB, OTG
Dynamic Range : ≥102 dB
S/N : ≥98 dB
Frequency Response : 20 Hz ~ 20k Hz
Max Power : 8 x 80 W
Nom Power :8 x 40 W
Output Signal Type :10 ch Low Level Output, 8 ch High Level Output
Output Signal EQ : 31 Levels EQ
Net Weight : 1.7 kg
Dimension(LxWxH) : 198 x 215 x 42 mm
