Installation of the Pioneer into the Nissan Almera N17 is pretty straightforward as the factory head unit is a standard 2 DIN size. The only additional accessories needed were the head unit harness adapter and antenna adapter. Check out some of the photos taken during the install.

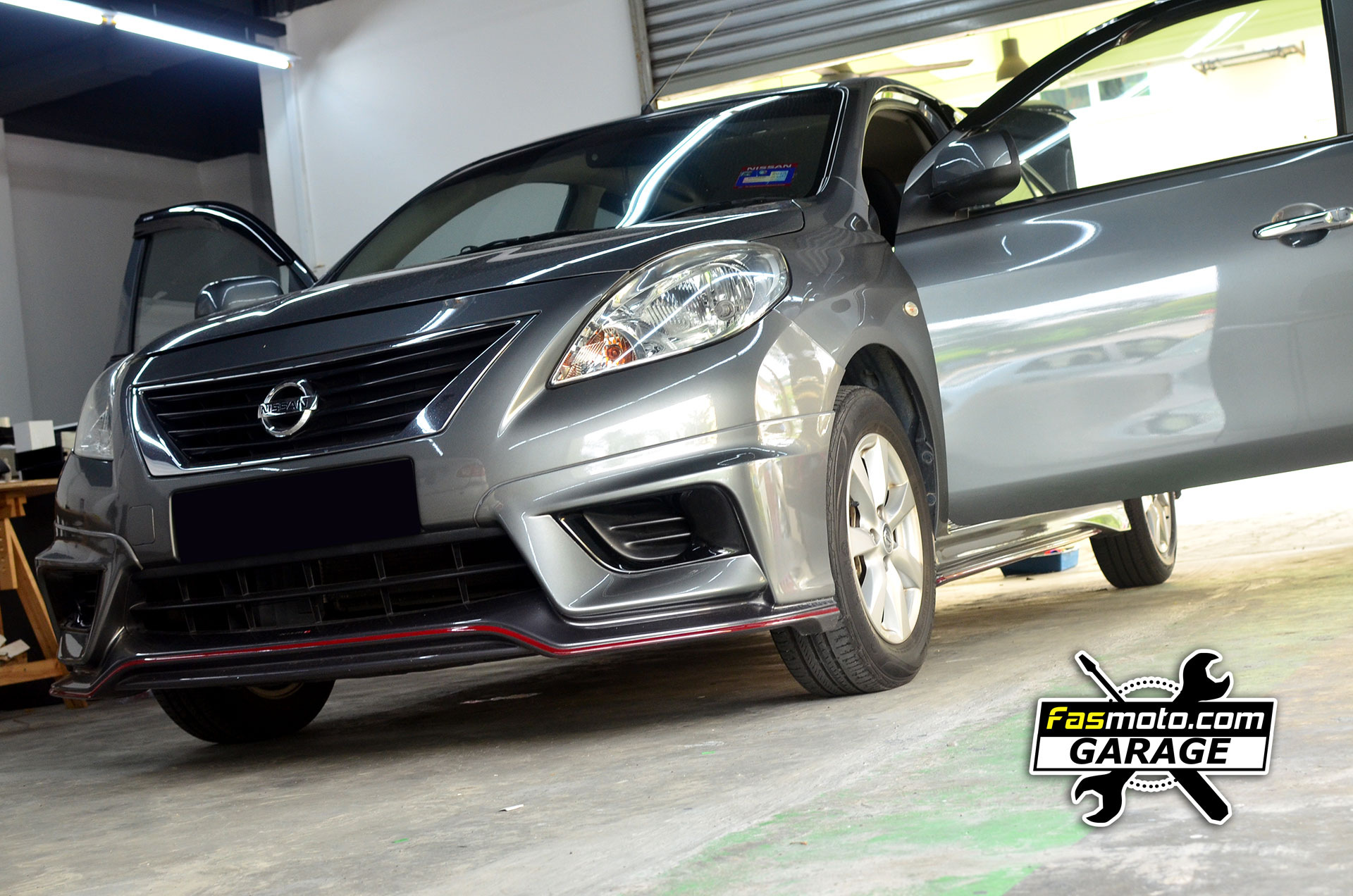

The Nissan Almera N17

Nissan Almera N17



The Nissan Almera N17 factory head unit

The factory stereo head unit



The Nissan Almera N17 factory head unit



Working on removing the factory head unit

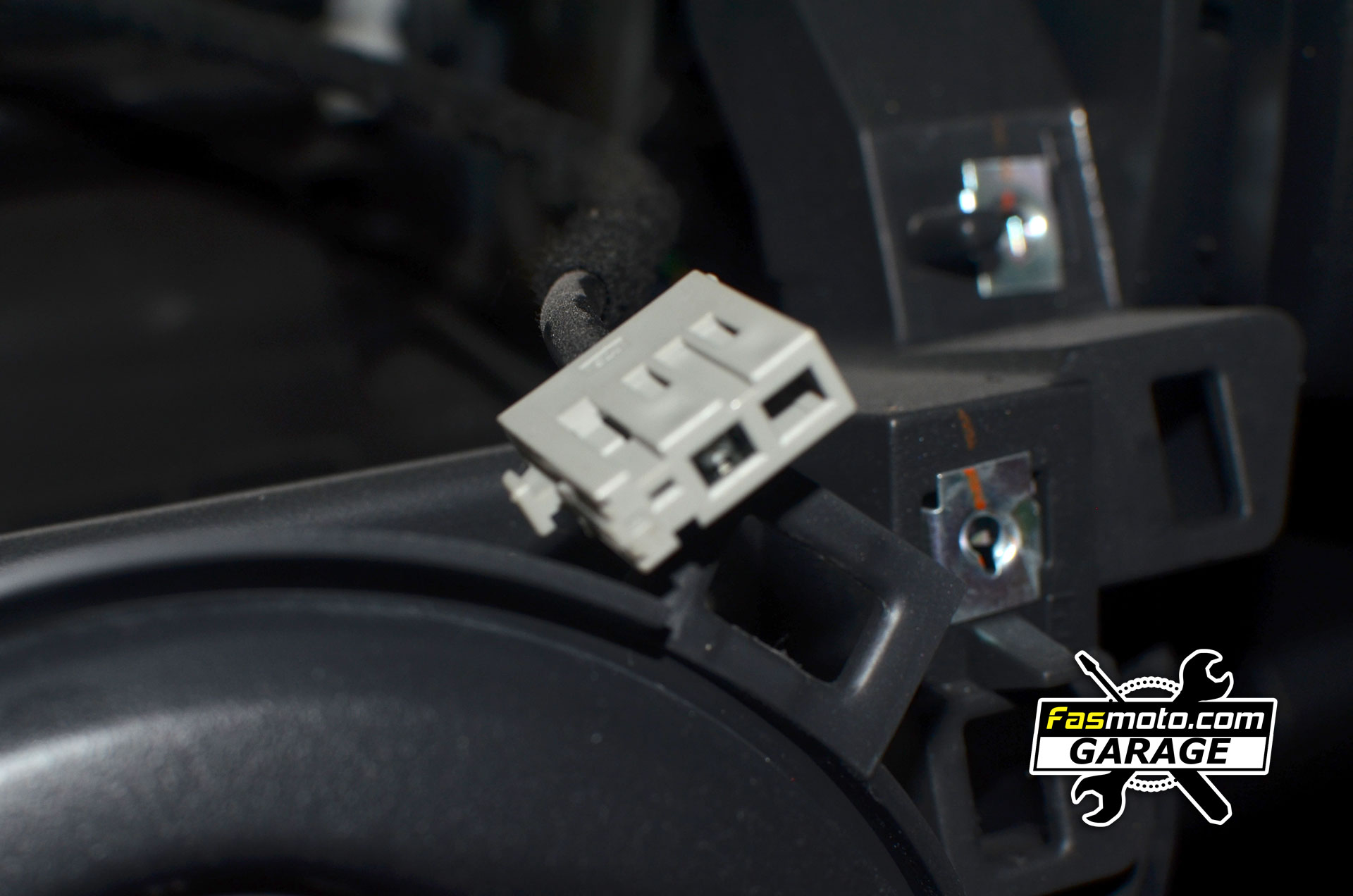

The factory antenna adapter

Nissan radio antenna harness

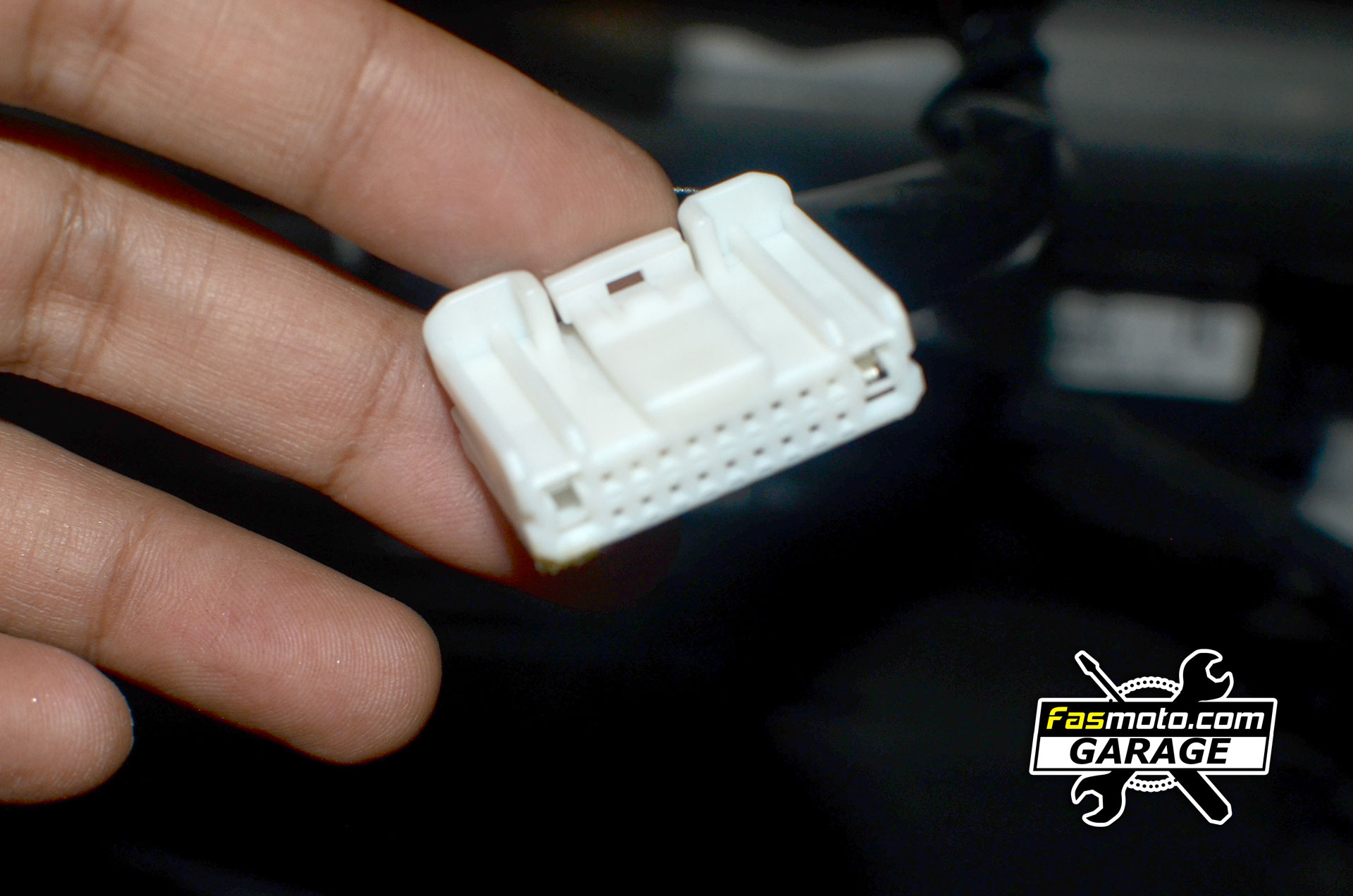

The factory stereo harness adapter

Nissan Stereo harness

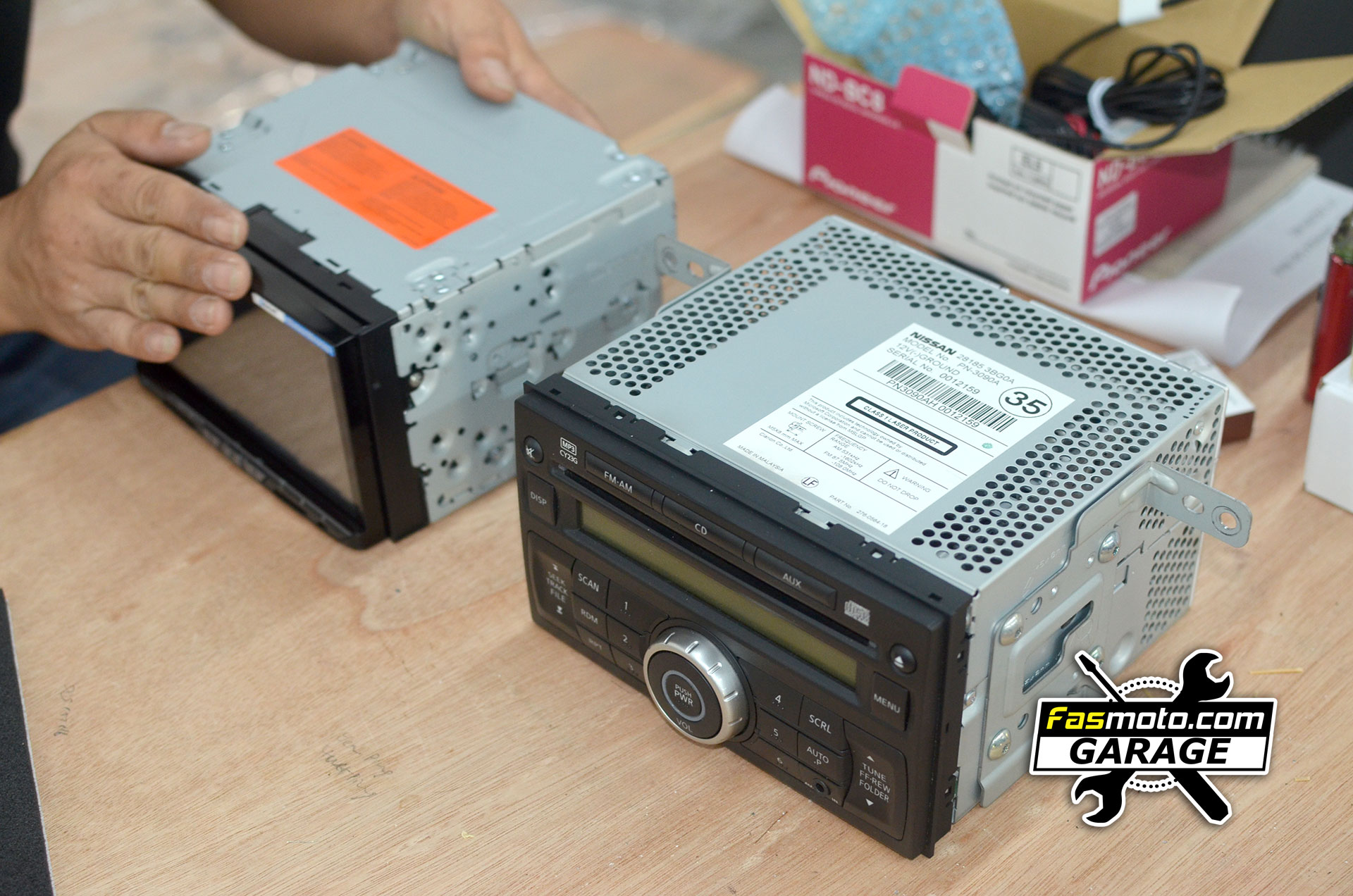

Lining up the stereo to check for mounting position

Getting the Pioneer in line with the factory stereo to identify the bracket position



Nissan Almera N17 Beauty Shot

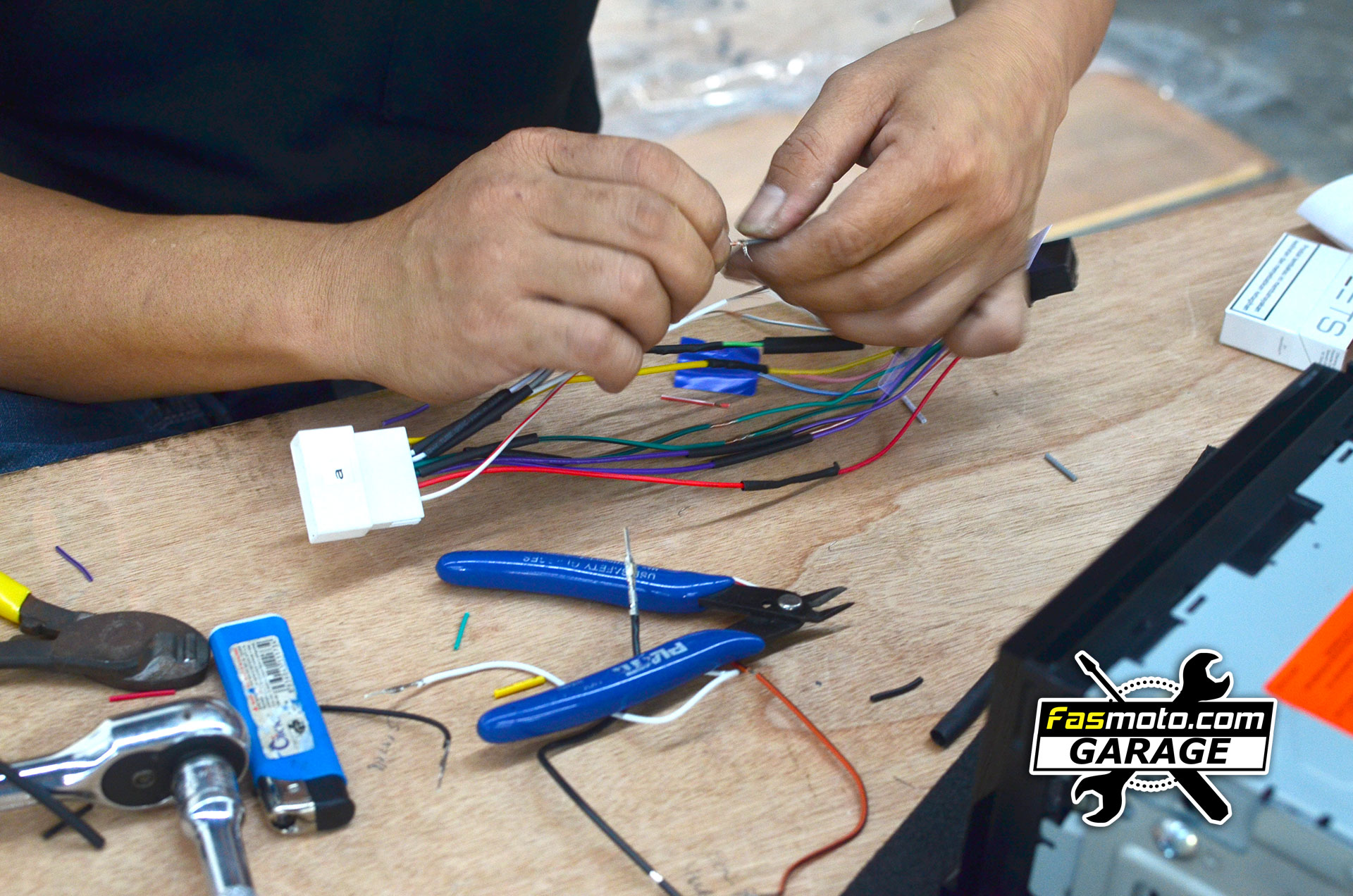

Getting on with wiring up the harness

Getting the wiring done so that we can just plug in the head unit



Getting on with wiring up the harness

That's it, jobs done! The Pioneer AVH-Z9250BT installation complete. Time for some beers.
