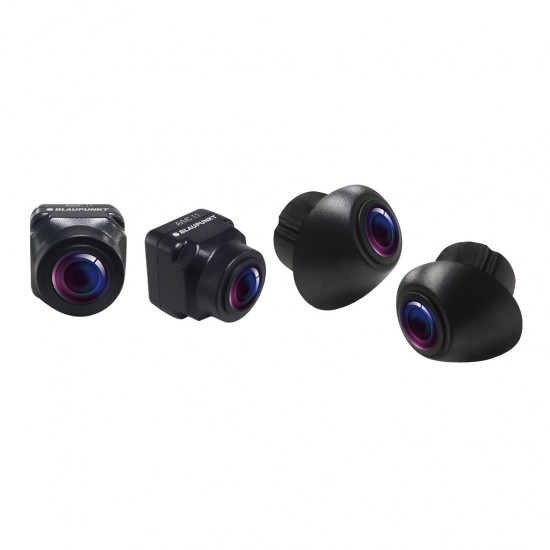

BLAUPUNKT AVMC 1.1 Velocity Power Series 360° Panoramic Parking System for Android

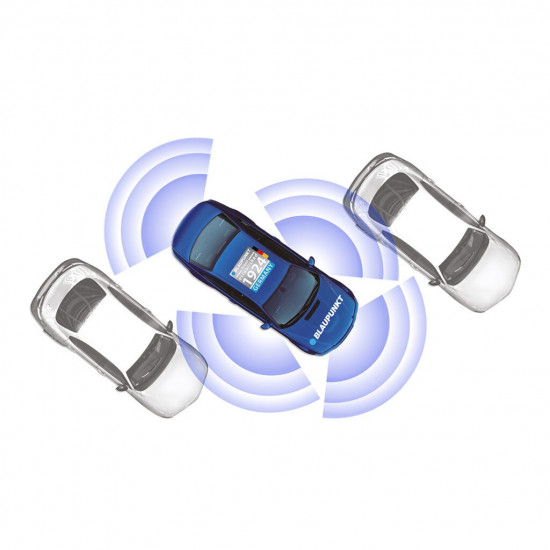

Blaupunkt All View Monitoring Camera AVMC 1.1 allows you to have a 360° Panoramic Parking System and bird eye view of your vehicle even when you’re driving or parking your vehicle. It simply combines the perspectives of the 4 cameras in different directions and combines them into a single live video in the car player display.  Stay alert of your surroundings with Blaupunkt AVMC 1.1.

Specifications

• Chip Model : GC2053 (Camera) + NVP2431 (Processing)
• Camera Specifications : 1/2.9- inch (6mm)
• Effective Pixels : 1920×1080=L200MP
• Image Resolution : 900 TVL
• Horizontal Resolution : 200M
• Exposure Control : Automatic
• Minimum Ilumination : COLOR : 0.001 LUX/F2.0
• Signal-To-Noise Ratio : >=48dB
• White Balance : Automatic
• Maximum Frame Rate : 1080p HD 25fps
• Dynamic Range : Support SDR
• Video Output : AHD 1.0Vp at 75ohm
• Synchronization System : Internal Synchronization
• Size : Hexagonal Square Plate With A Side Length Of 178
• Board Thickness : 6mm (Including Components)
• Operating Temperature : 20H-85C
• Operating Voltage : 4.5V-6.5V
• Power Input Range : 4.0V-5.5V
