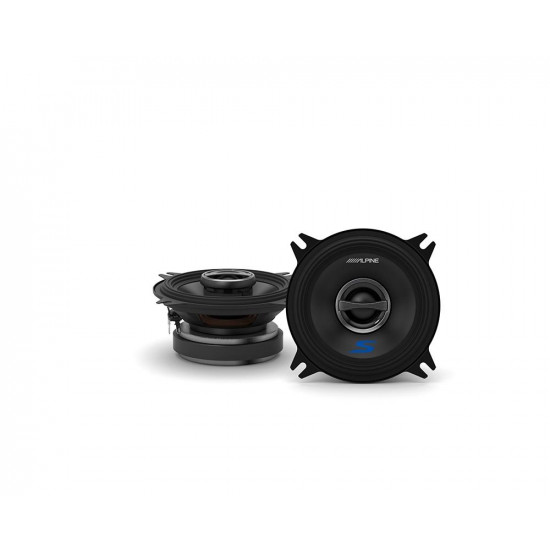

4" (10 CM) COAXIAL 2 - WAY SPEAKER

The New S-series with sleek and compact size are available in 2-way coaxial and component models, offer a great alternative for limited spaces of your car. S-Series emphasize the line’s sound quality at an entry level. With many sizes availability, these make suitable for various types of vehicles.

CFRP CONE

The CFRP diaphragm (Carbon Fiber Reinforced Plastic) designed just right between hardness and lightweight position to clear up sound signal and deliver efficient performance.

HAMR SURROUND

The Alpine uniqueness technology H.A.M.R. (High Amplitude Multi-Roll) surround adapted from high end sound system X-Series increasing high output and superb sound quality.

SPECIFICATION

GENERAL

• Frequency Range: 97 Hz - 22 kHz
• Impedance: 4 Ohms
• Sensitivity: 86

WOOFER

• CFRP (Carbon Fiber Reinforced Plastic) cone with spezialised rubber surround
• HAMR (High Amplitude Multi-Roll) Surround25 mm Voice Coil
• Magnet Material: Ferrite

TWEETER

• Tweeter Type: 1" Wide-Range Silk Dome
• Magnet Material: Neodymium
• Application Type: External/Swivel Tweeter Mounting Kit
• Flush mount
• Grill: Punched net

POWER HANDLING

• Peak Power:140 Watts
• RMS Power: 45 Watts

DIMENSION WOOFER

• Frame 102 mm
• Mounting Depth: 13 mm
• Mounting Height: 43 mm
• Magnet: 93 mm
