Alpine PXE-R500 6-channel Sound Processor




- Stock: In Stock
- Reward Points: 23
- Model: PXE-R500
- Weight: 2,300.00g
- SKU: PXE-R500
Built-in 6-channel amplifier audio processor! Sound quality, performance is significantly better than the same price as the competition!
Also, Support mobile phone APP and computer software tuning.
ALPINE Japanese Sound Master Tuning
Japan's fever-grade capacitors, black gold-plate aluminum electrolytic capacitors, long life, high ripple resistance, low impedance, audio fever in the world's top brand capacitors, tone alcohol thick, so that the sound quality results to achieve the best, to increase the performance of music is of great help.
Easy to install with small size
The size is 183.5mm x 136.9mm x 36.8mm which is the same size as Ipad, saving space, and installation is very convenient.

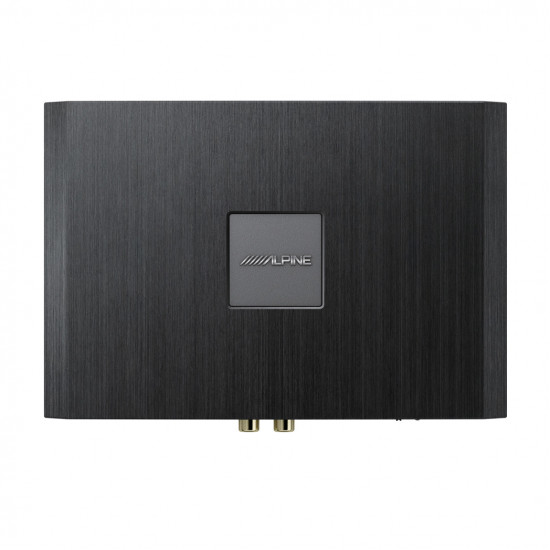

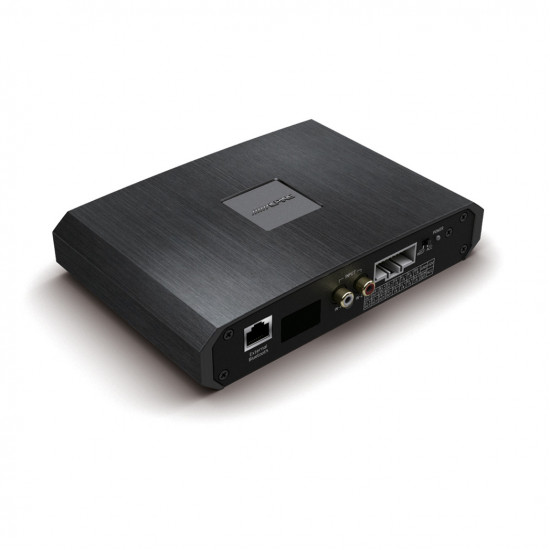

Best design with Aluminium housing & silver logo
The body is designed with all-black pulls, reflecting a high-end, stable texture. And ALPINE LOGO is located in the center of the machine. Silver-grey LOGO, highlighting ALPINE's unique taste.
Built-in HD Bluetooth module
The dual-mode Bluetooth is a highly integrated, low-power HD Bluetooth,24-bit DAC output, Bluetooth stereo transmission. The version specification for Bluetooth is 2.1 plus EDR/BLE V4.2, with transmit power up to class 2 The maximum effective distance is 15m.
Wire controller (sold separately)
RUX-C600 • Adjust the total volume (0~35) • Select the main audio source (High level, Bluetooth, Low level) • Select auxiliary audio source (High level, Bluetooth, Low level) • Adjust the bass volume (0~15) • Recall 6 sets of preset sound effect data
Frequency response
- 20Hz - 20KHz
Inputs
- 4 high-level inputs
- 6-channel RCA audio
- Built-in HD Bluetooth
Outputs
- 4 x 25W (Rated power)
- 4 x 50W (Max power)
Sound & Tuning
- 31 Bands parametric EQ
- 31 Bands graphic EQ
- Hi-pass / Low-pass / Bandpass Crossover
- Time correction
- Navi-mix
Dimension
- 183.5 x 136.9 x 36.8 mm
DSP.Audio2 | |
DSP.Audio2 | Link-Ril, Butterworth and Bessel |
General | |
DSP Software | Mobile App & Windows PC |
Type | DSP with Built-in Amplifier |
Warranty | 12 month |
Input | |
Bluetooth | Yes |
High Level Speaker - Input | 4-channel |
Impedance | High Level Input: 240 Ohm RCA Input: 20 kOhm Output: 51 Ohm |
Low Level RCA - Input | 2-channel |
Optical SPDIF | 1 |
Output | |
High Level Speaker - Output | 4-channel (25W RMS, 50W Max) |
Low Level RCA - Output | 6-channel |
Power | |
Fuse Rating | None |
Operating Voltage | 9-16VDC |
Connectivity | |
Bluetooth | Yes |
Audio | |
Frequency Response | 20Hz—20kHz |
Signal-to-Noise Ratio | >=100dB |
T.H.D. | <=0.01% |
Time Alignment | Yes |
