SONY XAV-9000ES Mobile ES 6.75‘’ 2 DIN Wireless High-Resolution Apple CarPlay Android Auto Car Audio Head unit

Specifications

Panel Design

Panel Surface Finish Color : Black

Key Illumination : Yes (White)

Panel Detachability : No

Multi-Language

Menu : English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Korean/Dutch

Caution : English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Korean/Dutch

Menu/Caution Initial : English

Meta Data Indication : English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Korean/Dutch

Expandability

USB : Yes (Type-C x 1, REAR)

Bluetooth : Yes

Rear View Camera Input : Rear/Input 1/Input 2

Video out : No

Pre-out : 3 Pre (Front LR / Rear LR / Sub LR)

Pre-out output level (V) : 5Vrms

AUX IN : No

A/V IN : No

SiriusXM Ready : Yes

HDMI IN : No

WI-FI : Yes

Built-in Microphone : No

External Microphone : Supplied

Steering Wheel Remote Input : Yes

Maestro RR : Yes

Smartphone Linkage

Weblink : No

Voice Command (Smartphone Function) Activate : Yes (only CPAA)

Apple CarPlay (for Promo) : Yes(Wireless)

Apple CarPlay (for Design) : Yes (Wireless)

Android Auto (for Promo) : Yes (USB/Wireless)

Android Auto (for Design) : Yes (USB/Wireless)

Hi-Res

Supported Formats : WAV/FLAC/ALAC

WAV format : 8k–768kHz / 16, 24, 32bits

FLAC format : 8k–384kHz / 16, 24bits

ALAC format : 8k–384kHz / 16, 24bits

Native DSD playback : No

Compatible native DSD files : Yes (.dsf/.dff)

DSD file clock : 2.8M, 5.6M, 11.2M, 22.4MHz

DVD/CD

DVD/CD Playback : No

BT Audio

Audio Codec : SBC/AAC/LDAC

Pause : Yes

CUE/REV : Yes

Track +/- : Yes

Folder +/- : Yes

Audio Level Adjustment : Yes (-6dB to +6dB)

Audio Level Adjustment initial : 0dB

Repeat Control : Yes

Shuffle Control : Yes

Meta Data Indication : Yes

BT Phone

Speed dial / 短縮ダイヤル : Yes (6 memories)

Recent calls (No.of) : Yes

Last dialed call / リダイヤル : Yes (select from the dialed call history)

Phonebook(Built in) : No

Phonebook code : UTF8

Phonebook Access via PBAP : Yes

Alphabetical Phonebook Sorting (Built-in) : No

Alphabetical Phonebook Sorting (PBAP) : Yes

Phone data password lock : No

Connection status (maximum No.) : [1HFP/PBAP+1Audio]

Display for connecting list : No

No. of records connected : 9

Any Key Answer : No

Auto Answer : No

DTMF : No

Internal ringtone : 1 (2016 Sony Mobile Ringtone)

Noise canceller : Yes

Noise canceller initial : Medium Cabin

Echo canceller : Yes

Echo canceller initial : Medium Cabin

Ring alert (Internal/Cellular) : No

Ring Volume Level Control : Yes

Ring volume level control initial : 14

Call Volume Level Control : Yes

Call volume level control initial : 14

Mic Gain Adjustment : Low/Mid/High

MIC GAIN Adjustment initial : Mid

TEL out channel : Front/Rear

TEL out channel initial : Front

Voice Dial Activation : No

Battery remainder indication : Yes

Signal Strength Indication : Yes

Sound Adjustment

EQ Bands : 14 Band Graphic Equalizer

EXTRA BASS : No

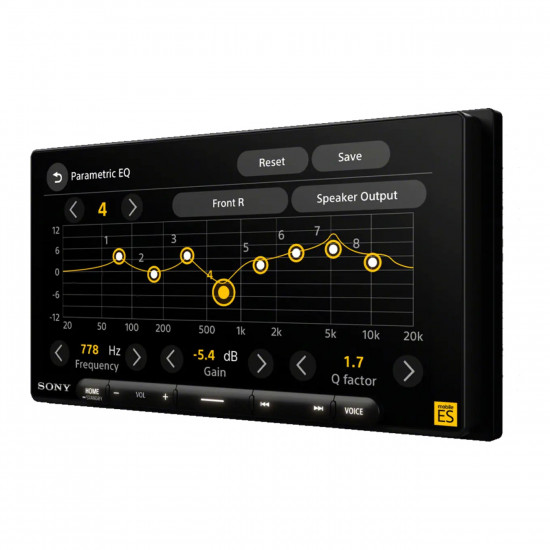

Parametric Equalizer (PEQ) : Yes

PEQ initial : Off

Dynamic Stage Organizer (DSO) : No

Time Alignment : Yes

Balance : Yes (+15 to -15)

Balance initial : 0

Fader : Yes (+15 to -15)

Fader initial : 0

Listening Position : Yes

High Pass Filter : Yes (50Hz to 250Hz)

High Pass Filter initial : Off

Low Pass Filter : Yes (50Hz to 250Hz)

Low Pass Filter initial : Off

Subwoofer Phase : Normal/Reverse

Subwoofer Phase initial : Normal

Subwoofer Adjust : Yes (50Hz to 250Hz)

Subwoofer Adjust initial : 250Hz

Supplied Accessories

Warranty card : Yes (NA for 3years)

HDMI Cable : No

Fitting Frame : No

Trim Ring (Collar) : No

Power Connector (Normal) : Yes

Power Connector (ISO) : No

Maruti Connector Cable : No

External Microphone : Yes

Remote Commander : No

Steering Remote Control cable : Yes

Ninja Cover : No

GPS Antenna : Yes

USB Extension Cable : Yes

RCA Cable : Yes (22pin)

Sensormatic Tag for Walmart : No

MRP Sticker for 'IN' version (India) : No

 Maruti-CDO Stickers (MGA/Packing List/PartsNo.) No

SNI (Standard National Indonesia) Label on Individual Carton : No

USB

USB VERSION : USB 2.0 (Type-C)

USB Charging Spec. (Max current/Voltage) : Yes (3A)

Mass Storage Class (MSC) : Yes

Media Transfer Protocol (MTP) : No

File System : exFAT, FAT12/16/32

Max Layer/Folder/File number : 25,000 files

Plug and Play : No

List Function : Yes

Pause : Yes

CUE/REV : Yes

Resume : Yes

Repeat : TRACK/FOLDER/DRIVE

Repeat Initial : All

Shuffle : OFF/FOLDER/DEVICE

Shuffle initial : Off

Audio Codec : MP3/WMA/WAV/AAC/FLAC/ALAC/DSF/DSDIFF

Audio Playable File Extension : .mp3/.wma/.wav/.m4a/.mp4/.flac/.m4a/.mp4/.dsf/.dff

Video Codec : ASF/WMV/AVI/MKV/MPEG-4

Video Playable File Extension : .asf/.wmv/.avi/.mkv/.mp4

Album artwork Indication : Yes

Meta Data Indication : Yes

HDMI

HDMI Version : No

HDCP Version : No

Tuner

FM Tuning range (MHz) : 87.5-107.9MHz

Selectable FM Step Frequency : No (200kHz)

FM (Tuning range/step/de-emphasis) : 65-74MHz/30kHz/50us (OIRT) : No

FM (Tuning range/step/de-emphasis) : 87.5-108MHz/50kHz/50us : No

FM (Tuning range/step/de-emphasis) : 87.5-108MHz/100kHz/50us : No

FM (Tuning range/step/de-emphasis) : 87.5-107.9MHz/200kHz/75us : Yes

FM (Tuning range/step/de-emphasis) : 87.5-108MHz/100kHz/75us : No

MW Tuning range (kHz) : 530-1710kHz

Selectable AM Step Frequency : No (10kHz)

MW (Tuning range/step) : 531-1602kHz/9kHz : No

MW (Tuning range/step) : 530-1710kHz/10kHz : Yes

LW Tuning range (kHz) : No

LW (Tuning range/step) : 153-279kHz/Seek 9kHz, Manual 1kHz : No

SW (Tuning range/step) : 5950-6205kHz/5kHz : No

RDS/EON : Yes (RBDS)

Preset : FM18/AM12

Auto Memory : BTM

AF : Yes

AF initial : Off

FM S/N ratio (mono) (dB) : 70dB

FM Channel separation (dB) : 45dB

FM Frequency response (Hz) : 20-15,000Hz

MW/LW/SW Sensitivity (75 Ω) MW/LW/SW (μV) : 32dB

DAB : No

HD Radio embedded : No

TA : No

FM Usable sensitivity (75 Ω)(dBf) : 7dB

FM Selectivity (400 kHz) (dB) : 75dB

Bluetooth

Bluetooth version : Bluetooth Version 5.0

HFP : Yes (1.7.1)

HSP : No

A2DP : Yes (1.3.1)

OPP : No

DUN : No

SPP : No

AVRCP : Yes (1.6.1)

AVRCP (MTE) : No

PBAP : Yes (1.1)

SAP : No

VDP : No

BIP : No

RF ON/OFF : Yes

RF ON/OFF initial : On

Device Name : XAV-9000ES

Display

Touch Screen ; Yes / Capacitive with AG (Not Multi Touch Compatible)

LCD Type : TFT Active Matrix

Screen Aspect Ratio : 17:9

Screen Size Diagonal (inch/mm) : 6.75 inch / 171 mm

Screen Size (WxH mm) : 168.1 X 93.1 (mm)

Resolution (DOT) : 1280 X 720

Brightness : 425 cd/m2

Viewing Angle (Contrast Ratio 10-1) : 85/85/85/85 (L/R/U/D)

General

Maximum output power (4ohms_1kHz_16V) (W) : 55W

Speaker impedance (ohms) : 4-8Ω

CTA2006 output power (W) : 20W

CTA2006 S/N (dBA) : 86dBA

Backup Memory : Yes

Source Sound Memory (SSM) : No

Clock : 12H

Beep initial : On

Steering Wheel Remote initial : Preset

Demo Mode : Yes

Display off mode : Yes

Dimmer : Yes

Dimmer Area : Display Monitor and Key

Dimmer Method : Auto/Manual select

Dimmer Adjust : Yes

Dimmer Adjust initial : 6

Color System : NTSC/PAL

Color System Auto switch : Yes

Aspect : No

PICTURE EQ : No

Wallpaper preset quantity : 4

Wallpaper Initial : Black

Wallpaper customization : Yes (Custom 2)

Splash screen : No

Parking Control : Yes

Speed pulse Control : Yes (for GPS)

Rear View Camera-In Marker Setting : Yes

Firmware upgradability : Yes (by USB flash drive or Smartphone USB tethering)

Accessibility : Closed Caption / TTS: No support

Power connector type : 16P

ANT connector type : JASO

Dimensions (WxHxD) (mm) : 178 x 100 x 137

Mounting dimensions (WxHxD) (mm) : 182 x 111 x 120

WEIGHT (kg) : 1

POP : mobile ES logo, Sirius XM Ready
