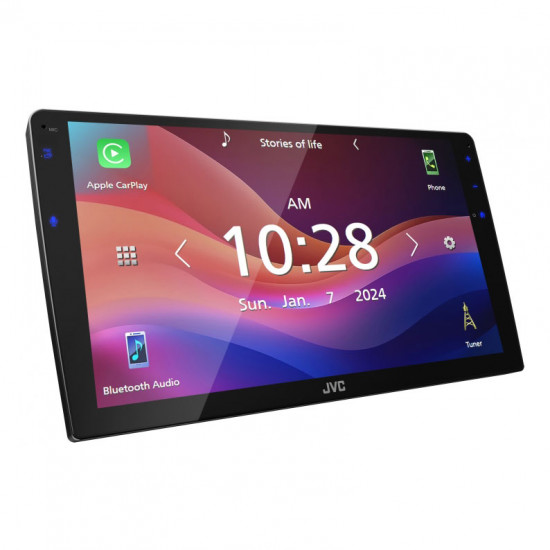

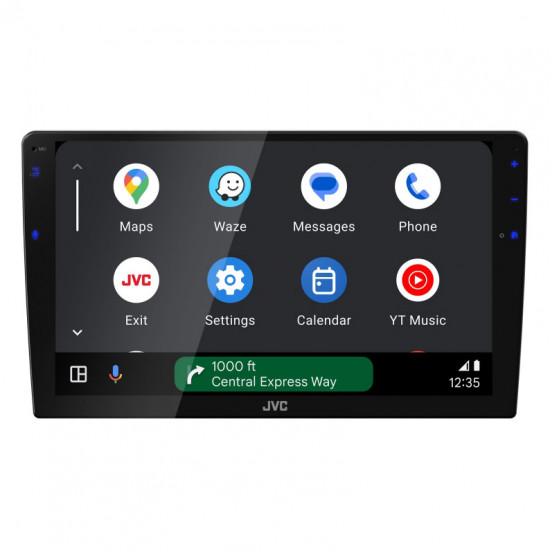

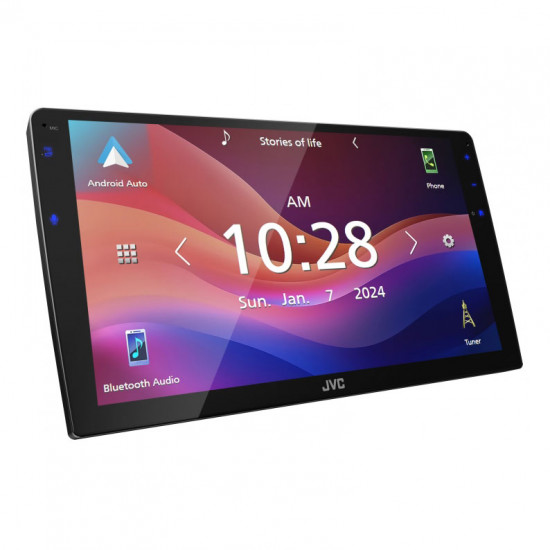

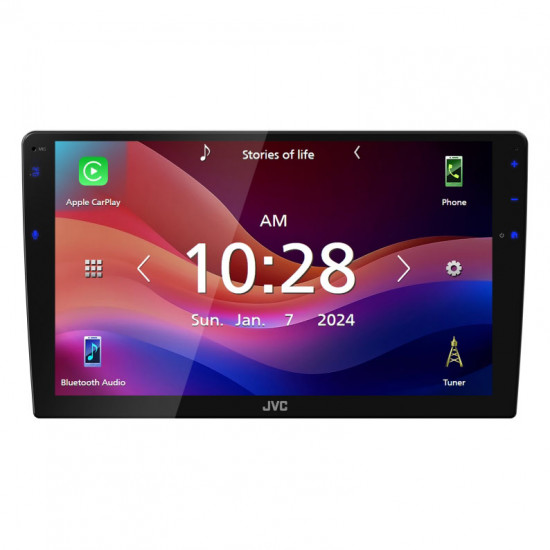

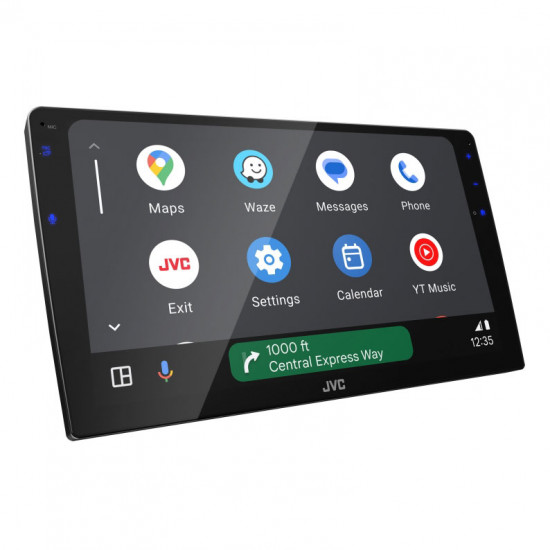

JVC KW-M80AW 9" Display Universal Digital Media Receiver with Wireless Apple CarPlay, Android Auto, Mirroring

KW-M80AW

Monitor

Screen Size : 9"W SVGA
Touch Panel : Capacitive
Key Illumination Color : Blue
Dimmer : Yes
Multilingual Display : Yes

Media Playback

MP3 Compatible with Tag : USB
WMA Compatible with Tag : USB
WAV Compatible with Tag : USB
AAC Compatible with Tag : USB
FLAC Compatible with Tag : USB
H.264 Compatible : USB
WMV Compatible : USB
MPEG 1/2 Compatible : USB
MPEG 4 Compatible : USB
MKV Compatible : USB

Bluetooth Control

Built-in Bluetooth[1] : Yes (Hands-Free MIC Built-in)
Hands Free Call : Yes (HFP1.7)
Audio Streaming & Control (A2DP, AVRCP) : Yes
Supported Audio Formats : AAC / SBC
Voice Dialing (voice recognition compatible mobile phone required) : Yes
Phone Book Access Profile (PBAP) : Yes

Wi-Fi Control

Built-in Wi-Fi : Yes

Android Control

Android Auto[2] : Yes (via Wi-Fi or USB)
Mirroring for Android : Yes (via Wi-Fi) *Need mirroring App

iPod/iPhone Control

CarPlay[3] : Yes (via Wi-Fi or USB)
Mirroring for iPhone : Yes (via Wi-Fi) *Need mirroring App

USB

USB Port : x 1 (High Speed)
Position : Rear
USB Power Supply : Yes (2.1A High Current Charging)

Radio Tuner

Radio Data System : Yes
Preset Stations : 36(FM:24ch, AM:12ch)
Auto Memory Entry : Yes

FM

Frequency Range : 87.5-108.0MHz

AM

Frequency Range : 531-1,611kHz

Audio

Maximum Power Output (Front & Rear) : 50Wx4
Full Bandwidth Power (Front & Rear) : 22W x 4
EQ : Yes (13-Band Graphic EQ)
Preset EQ : Yes (7Preset + 3user)
Bass Boost : Yes
High-Pass Filter/Low-Pass Filter : Yes/Yes
Speaker Size Control : Yes

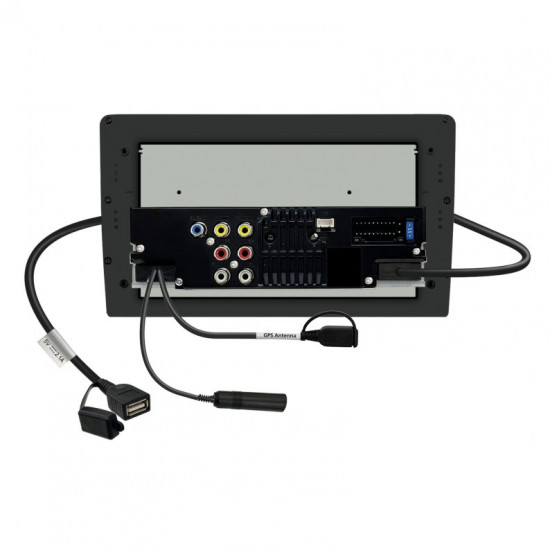

Inputs and Outputs

Video Out : x 1 (V:RCA)
Rear view camera Input : Yes
Line Output Terminals : 2Preouts + Sub WF (Mono)
Pre-output Level/Impedance : 2.5V / 10k ohms
Subwoofer Output with Level/Frequency Control : Yes (Normal / Reverse)

General

Short Chassis : Yes
Wireless Remote Control Type : Optional (RM-RK259 required)
Steering Remote Control Ready : Yes
Learning Direct OEM Remote    Yes

Dimensions (W x H x D) / Weight

Installation Size : 229 x 130.5 x 100.8 (mm)
Weight : 1.33kg
Unit weight in individual package : 1.86kg

[1]Available functions depend on mobile phone.
[2]Compatible Android phone and compatible active data plan required.
[3]Supported on iPhone 6s, 6s Plus, 7, 7Plus, 8, 8Plus, X, XS, XS Max, XR, 11, 11Pro, 11Pro Max, SE(1st G), SE(2nd G),12, 12 mini, 12Pro, 12Pro Max, 13, 13 mini, 13Pro, 13Pro Max, 14, 14Plus, 14Pro, 14Pro Max, 15, 15Plus, 15Pro, 15ProMax. The service may not be available in certain countries.KW-M80AW
