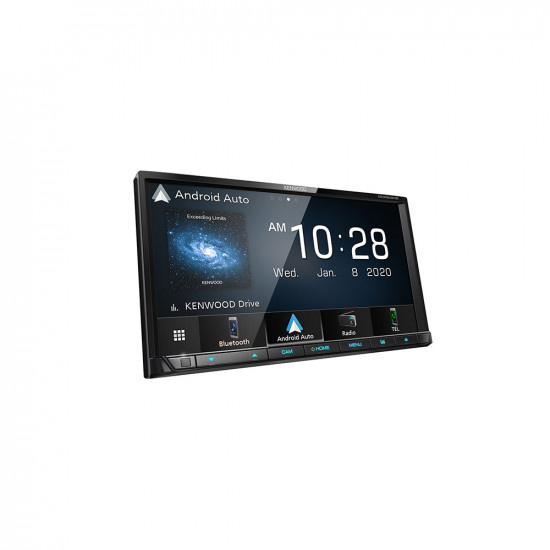

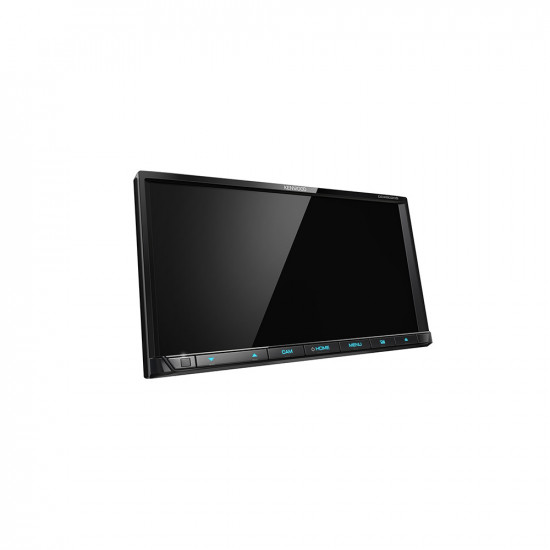

Kenwood DDX8020S 7-inch 2-DIN Apple CarPlay Android Auto Bluetooth USB Spotify 2-DIN Receiver

Monitor Section
Picture size: 6.95 inches(diagonal) wide
W x H: 156.6 mm x 81.6 mm
Display system: TN LCD panel
Drive system: TFT active matrix system
Number of pixels: 1,152,000 / 800H x 480V x RGB
Effective pixels: 99.99%
Pixel arrangement: RGB striped arrangement
Back lighting: LED

DVD Section
D/A Converter: 24 / 32Bit
Audio Decoder: Linear PCM
Dolby Audio
MP3 / WMA / AAC / WAV / FLAC / Vorbis
Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV
Wow & Flutter: Below Measurable Limit
Frequency response 96k Sampling: 20 - 44,000 Hz
48k Sampling: 20 - 22,000 Hz
44.1k Sampling: 20 - 20,000 Hz
Total harmonic distortion 1kHz: 0.010%
Signal to Noise ratio: 90.5dB (DVD-Video 96k)
Dynamic range: 89dB (DVD-Video 96k)
DISC Format: DVD-Video / VIDEO-CD / CD-DA
Quantifying bit number: 16 / 20 / 24bit

USB I/F Section
USB Standard: USB2.0 High Speed
File System: FAT 16/32, exFAT, NTFS
Maximum Power Supply Current: DC5V=1.5A
D/A Converter: 24/32Bit
Audio Decoder: MP3 / WMA / AAC / WAV / FLAC / Vorbis
Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV

Frequency response
192k Sampling: 20 - 88,000 Hz
96k Sampling: 20 - 44,000 Hz
48k Sampling: 20 - 22,000 Hz
44.1k Sampling: 20 - 20,000 Hz

Total harmonic distortion 1kHz: 0.010%
Signal to Noise ratio: 98.5dB
Dynamic range: 89dB

Bluetooth Section
Technology: Bluetooth Ver5.0
Frequency: 2.402 - 2.480 GHz
RF Output Power (E.I.R.P.): +4dBm (MAX), Power Class 2
Maximum Communication range: Line of sight approx. 10m (32.8ft)
Audio Codec: SBC / AAC
Multi Profile Support: Multi Profile

Profile
- HFP (V1.7) (Hands Free Profile)
- SPP (Serial Port Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (V1.6) (Audio/Video Remote Control Profile)
- PBAP (Phonebook Access Profile)

DSP Section
Graphics equalizer
- BAND: 13Band
Frequency (Hz) (BAND1-13): 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
Gain: -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]

2Way X'Over
HIGH PASS FILTER frequency: Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
SLOPE: -6/-12/-18/-24[dB/Oct.]
LOW PASS FILTER frequency: 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
SLOPE: -6/-12/-18/-24[dB/Oct.]

3Way X'Over
HIGH PASS FILTER frequency: 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k
SLOPE: -12/-18/-24[dB/Oct.]
Band PASS FILTER frequency: Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz]
250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through
SLOPE: -12/-18/-24[dB/Oct.]
LOW PASS FILTER frequency: 30/40/50/60/70/80/90/100/120/150/Through[Hz]
SLOPE: -12/-18/-24[dB/Oct.]

Position
Front / Rear /Subwoofer Delay: 0 - 6.1m (0.01m Step)
Gain: -8 to 0dB
Subwoofer Level: -50 to +10dB
FM: Frequency Range: 87.5MHz - 108.0MHz
(Frequency step): (50kHz)
Usable sensitivity: 9.3dBf
S/N30dB: 0.8µV/75O
Quieting sensitivity: 15.2dBf
DIN S/N 46dB: 1.6µV / 75Ohms
Frequency response (±3.0dB): 30Hz - 15kHz
S/N (dB): 65dB (MONO)
Selectivity: Over 80dB (±400kHz)
Stereo separation: 45dB (1kHz)

AM
Frequency Range (Frequency step): 531kHz - 1611kHz (9kHz)
Usable sensitivity: 25µV

Video
Color system of external video input: NTSC/PAL
External video input level (Mini jacks): 1 Vp-p / 75 Ohms
External audio max input level (Mini jacks): 2 V / 25 kOhms
Video Input level (RCA jacks): 1 Vp-p / 75 Ohms
Video Output level (RCA jacks): 1 Vp-p / 75 Ohms
Audio Output level (Mini jacks): 0.9 V / 10 kOhms
Analog RGB input: -

Audio
Maximum Power Output (Front&Rear): 50Wx4
Typical Power Output (Front&Rear) (at less than 1%THD): Full Bandwidth Power, 22Wx4
Output frequency band: 20 - 88,000Hz
Preout level (V): 5V / 10kOhms
Preout impedance (O): =< 300 Ohms
Speaker Impedance (O): 4-8 Ohms

General
Operating voltage: 12V DC Car Battery
Installation Dimensions WxHxD: 178mm x 100mm x 160mm
Weight Main unit: 2.4 kg
