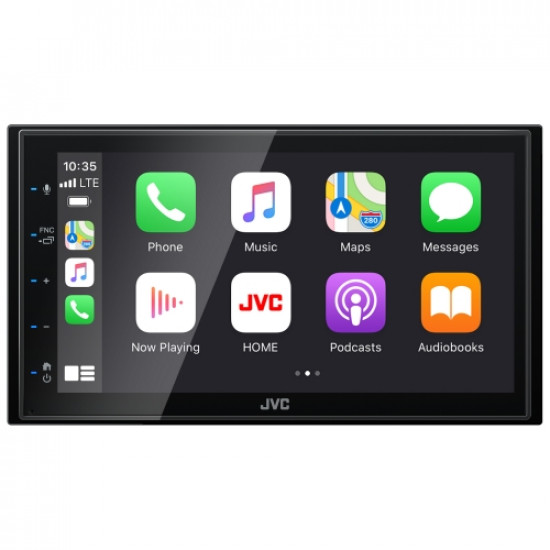

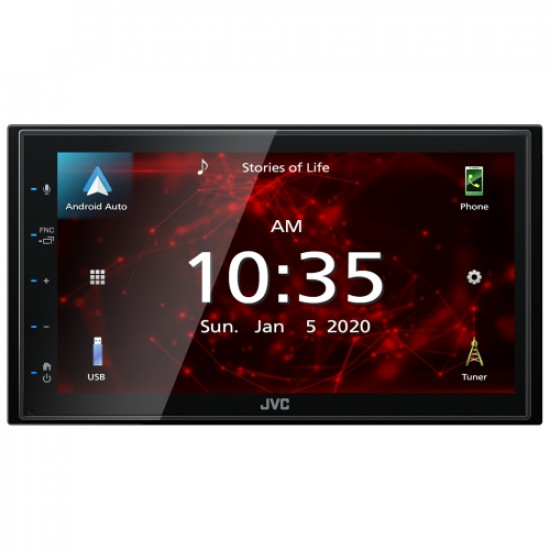

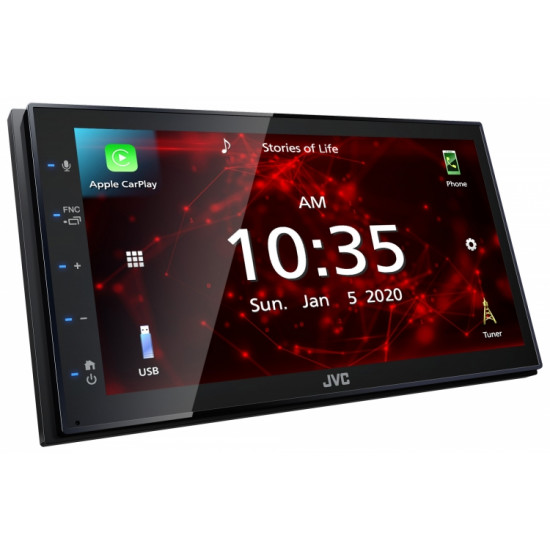

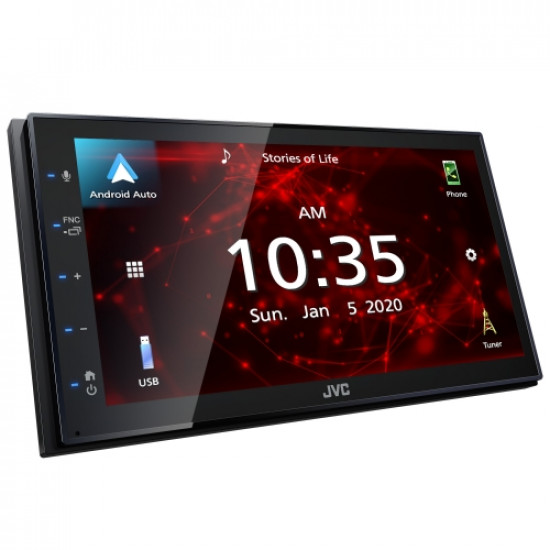

JVC KW-M560BT Apple CarPlay Android Auto Digital Media Receiver 6.8" Capacitive Touch Control Monitor Bluetooth Spotify USB Mirroring Receiver (Does Not Play DVD/CD)

You may need :

Installation Trim KitHarness AdapterHarness AdapterHarness AdapterUSB Port AdaptersSteering Wheel Harness Adapters

JVC KW-M560BT


Monitor
Screen Size :6.8"W VGA Screen
Touch Panel : Capacitive
Monitor Touch : Control Yes
Customisable GUI : Yes
Key Illumination Color : Blue
Dimmer : Yes
Multilingual Display : Yes[4]

Media Playback
MP3 Compatible with Tag : USB
WMA Compatible with Tag : USB
WAV Compatible with Tag : USB
AAC Compatible with Tag : USB
FLAC Compatible with Tag : USB
H.264 Compatible : USB
WMV Compatible : USB
MPEG 1/2 Compatible : USB
MPEG 4 Compatible : USB
AVI/MKV Compatible : USB

Bluetooth Control
Built-in Bluetooth[1] : Yes (Wired-Mic included)
Hands Free Call : Yes (HFP1.6 Wideband Speech)
Audio Streaming & Control (A2DP, AVRCP) : Yes
Supported Audio Formats : AAC / SBC
Voice Dialing (voice recognition compatible mobile phone required) : Yes
Phone Book Access Profile (PBAP) : Yes
Alphabetical Search for Phone Book : Yes
Auto Pairing for iPhone/Android : Yes (Android only)

Android Control

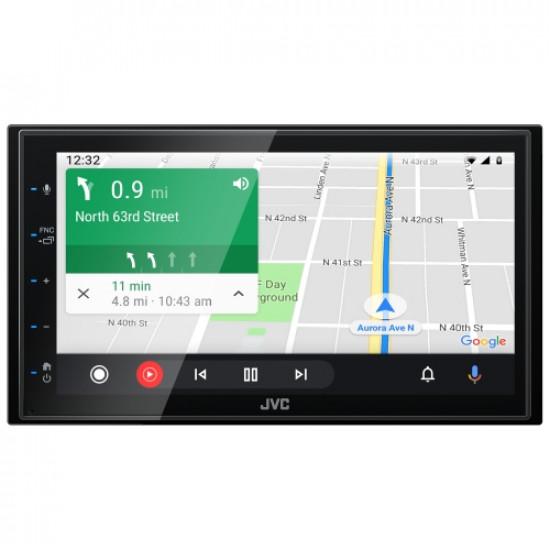

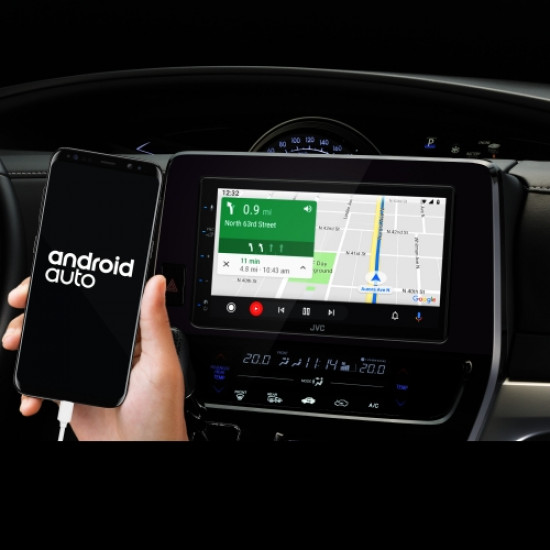

Android Auto[2] : Yes (via USB)
Mirroring for Android : Yes (via USB) *Need mirroring App
Android Music Playback : Yes (via Bluetooth(R))

iPod/iPhone Control

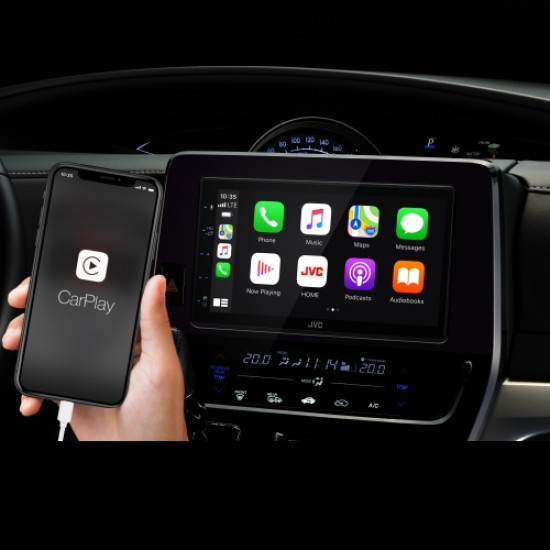

CarPlay[3] : Yes (via USB)

USB
USB Port : x 1 (High Speed)
Position : Rear
USB Power Supply : Yes (1.5A High Current Charging)

Radio Tuner
Radio Data System : Yes
Preset Stations : 20(FM:15ch, AM:5ch)
Automatic Presetting (Strong Station Sequential Memory) : Yes
FM
Frequency Range : 87.5-108.0MHz
AM
Frequency Response : 531-1,611kHz

Audio
Maximum Power Output (Front & Rear) : 50Wx4
Full Bandwidth Power (Front & Rear) : 22W x 4 (Full Bandwidth Power, at less than 1% THD)
EQ : Yes (13-Band Graphic EQ)
Preset EQ : Yes (7Preset + 3user)
Bass Boost : Yes
High-Pass Filter/Low-Pass Filter : Yes/Yes
Time Alignment : Yes

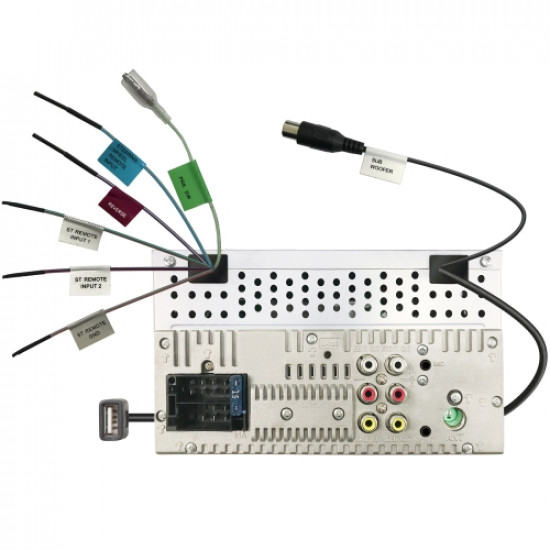

Inputs and Outputs
AV Input : mini jack (AV-IN or Camera switchable)
Video Out : RCA
Rear view camera Input : Yes
Line Output Terminals : 2Preouts (Terminal) + Sub WF (Cable)
Pre-output Level/Impedance : 2.0V / 10k ohms
Subwoofer Output with Level/Frequency Control : Yes

General
Back Up Memory : Yes
Wireless Remote Control Type : Ready (RM-RK258 required)
Steering Remote Control Ready : Yes
Learning Direct OEM Remote : Yes
ISO Connector : Yes

Dimensions (W x H x D)

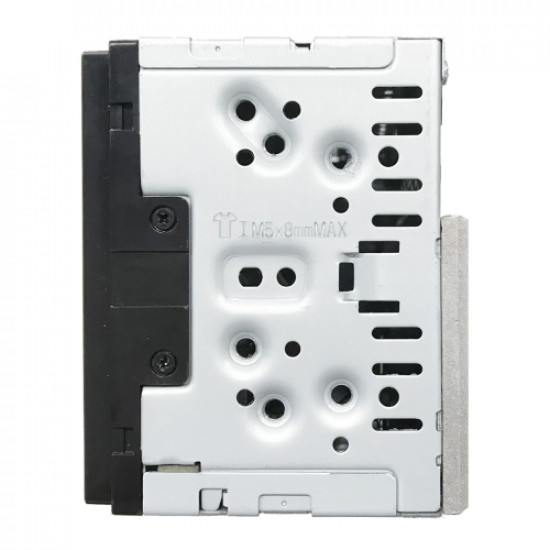

Installation Size : 178 x 100 x 75 (mm)
Weight : 1.1kg
Unit weight in individual package : 1.8kg

[1]Available functions depend on mobile phone.
[2]Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. The service may not be available in certain countries.
[3]Apple CarPlay is available with iPhone 7, iPhone 7 Plus, iPhone 6s, iPhone 6s Plus, iPhone 6, iPhone 6 Plus, iPhone SE, iPhone 5s, iPhone 5c or iPhone 5 with iOS 7.1 or newer. The service may not be available in certain countries.
[4]Multilingual (English / Russia / Thai / Turkish / Arabic / Persian / Malaysia / Indonesia)
General
Camera InputYes
External MicYes
Fitment SizeDouble DIN
NavigationNone
OEM Steering Remote SupportYes
Wireless Remote ControlNo
Display
Key IlluminationBlue
Multi-Language DisplayYes (English / Russian / Thai / Turkish / Arabic / Persian / Bahasa Melay / Bahasa Indonesia )
Resolution800 x 480 (WVGA)
Screen Size6.8 Inch
Touch ScreenYes - Capacitive
Connectivity
Android AutoYes
Apple CarPlayYes
BluetoothYes
MirroringUSB
Audio
EQ13-band
Hi-Res AudioNo
MOSFET (W)50W x 4
Network ModeYes. 3-way Network Mode (High/Mid/Low)
SpotifyYes (via Apple CarPlay and Android Auto)
Subwoofer ControlYes
Time AlignmentYes
Tuner
RadioFM/AM
RDSYes
ShortwaveNo
Inputs/Outputs
Aux-in1 AV Rear
Camera InputRear Only
HDMINo
RCA Preouts3 (2.0V)
USB 1 Rear (USB 1.5A)
Video OutNo
Media Playback
Audio FormatsMP3, WMA, WAV, AAC, FLAC
MediaUSB/Bluetooth
Video FormatsWMV, MPEG 1/2, MPEG 4, MKV, AVI, H.264
