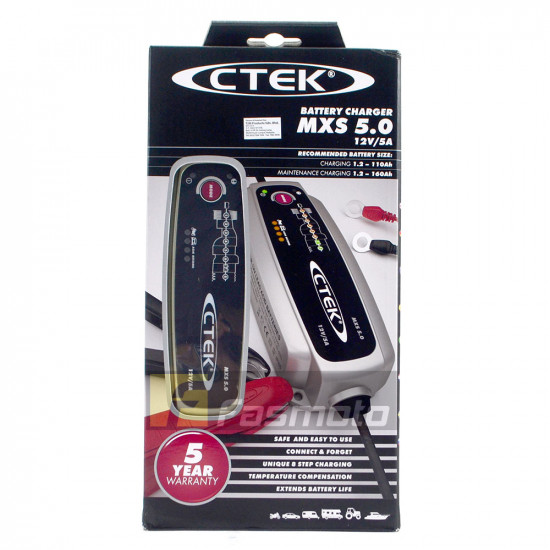

CTEK MXS 5.0 Advanced 12V Battery Charger 5A max (UK)

CTEK MXS 5.0 Advanced 12V Battery Charger 5A max (UK)

CTEK MXS 5.0 Advanced 12V Battery Charger 5A max (UK)


The MXS 5.0 is an advanced microprocessor controlled battery charger with automatic temperature compensation built in providing unrivalled performance on lead-acid batteries from 1.2Ah up to 110Ah. The MXS 5.0 solves a broad range of battery problems and is the ideal charger for the user with high demands. Features of the MXS 5.0 include diagnosis of battery condition to establish if it can receive and retain charge, patented automatic desulphation step and a special reconditioning step that will revive and restore deeply discharged and stratified batteries. AGM option is perfect for maximising performance and life of most Stop - Start batteries. The built in temperature compensation ensures ideal charging performance even in the most extreme conditions. Patented Float/Pulse maintenance makes the MXS 5.0 ideal for long - term maintenance. The entire process of battery testing, charging and maintenance is easily followed on the clear LED display.

The MXS 5.0 is a fully automatic "connect and forget" 12V charger with 8 charging steps and offers selectable SMALL BATTERY, and NORMAL BATTERY  programs. The RECOND and AGM options operate individually or together  in both SMALL BATTERY and NORMAL BATTERY programs providing great  flexibility for the user. Wide charging range on all lead-acid battery types  from 1.2Ah up to110Ah with additional maintenance capability to 160Ah.  Splash proof and dust proof (IP65).  The MXS 5.0 is easy and safe to use,  protects vehicle electronics, is spark-free, reverse polarity protected and short  circuit proof. The MXS 5.0 features a 5- year warranty.
Step 4: Battery ready to use

Step 7: Fully charged battery

Step 8: Maintenance charging

COLD/AGM: Charging in cold conditions, AGM and Stop-Start batteries

RECOND: Recondition of deeply discharged batteries

SMALL: Program for charging small batteries

NORMAL: Program for charging normal batteries

Volt     12V
Rated Voltage AC     220–240VAC, 50–60Hz
Charging voltage     SMALL, NORMAL: 14.4V, COLD/AGM: 14.7V, RECOND: 15.8V
Min battery voltage     2.0V
Charging current     5A max
Current, mains     0.6A rms (at full charging current)
Back current drain     <1Ah/month
Ripple     <4%
Ambient temperature     -20°C to +50°C, output power is reduced automatically at high temperatures
Charger type     8 step, fully automatic charging cycle
Battery types     All types of 12V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL)
Battery capacity     1.2–110Ah up to 160Ah for maintenance
Dimensions     168 x 65 x 38mm (L x W x H)
Insulation class     IP65
Weight     0.6kg
Temperature Compensation     Built in charge voltage compensation according to ambient temperature


Included with this model:

(i) Comfort Connect Eyelet M6
Comfort Connect Eyelet M6
Comfort Connect - Eyelet is available in three different sizes for different battery terminal sizes.

Eyelet: M6 (6,4 mm)
Cable length on all: 40 cm
It is delivered with a 2-year warranty.


Optional, Not included in this model:

(iii) Comfort Connect Cig Plug (Sold Separately)
Comfort Connect Cig Plug
This is a quick connector for truly trouble-free charging.

The battery is charged through the vehicle's 12-volt socket (previously called the cigarette lighter socket).

This is a universal model that fits both 12 mm and 21 mm sockets.

Cable length: 40 cm
It is delivered with a 2-year warranty.

Article number 56-263
Insulation class IP65

(iv) Comfort Connect Extension Cable 2.5 (Sold Separately)
Comfort Connect Extension Cable 2.5
Extension cable allows the CTEK charger to be used further away from the vehicle or battery. To use, simply connect the Comfort Connect Extension cable into your CTEK charger accessory plug and place the other end into the socket of the clamp or eyelet accessories that came supplied with your CTEK charger. The unique CTEK Comfort Connect system ensures a secure connection.

Suitable for use with all CTEK chargers up to 10A using the Comfort Connect system.

2.5M/8' 2" CABLE
MAX 10A

It is delivered with a 2-year warranty.

Article number 56-304
Insulation class IP65

Battery Charger
Ambient Temperature-20°C to +50°C, output power is reduced automatically at high temperatures
Back Current Drain<1Ah/month
Battery Capacity1.2–110Ah up to 160Ah for maintenance
Battery TypesAll types of 12V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL)
Charger Type8 step, fully automatic charging cycle
Charging Current5.0A max
Dimensions168 x 65 x 38mm (L x W x H)
Input220–240VAC, 50–60Hz
Insulation ClassIP65
OutputSMALL, NORMAL - 14.4V, COLD/AGM - 14.7V, RECOND - 15.8V
Ripple<4%
Temperature CompensationBuilt in charge voltage compensation according to ambient temperature
Volt12V
Weight0.6kg
Warranty
Duration5 Years
