BLAUPUNKT TPMS 2.2 E/V Wireless Real-time Tire Pressure Monitoring System | Available in External Sensor / Valve Sensor

Whether you’re cruising through city streets or crossing open motorways, the TPMS 2.2E/V offers real-time tyre pressure and temperature monitoring—quietly and precisely.

Precision That Moves With You

Using a stable 433.92 MHz signal, the TPMS 2.2E/V delivers reliable updates, helping prevent wear, improve efficiency, and keep every drive safer.

• Pressure Range: 0 – 8.0 Bar / 0 – 116 PSI
• Pressure Accuracy: ± 0.15 Bar / 2.2 PSI
• Temperature Accuracy: ± 3°C




Built for Every Journey

Designed to handle the extremes, from cold starts to sun-soaked road trips:

• External Sensor Temp: -20°C to 85°C
• Valve Sensor Temp: -40°C to 125°C
• Display Temp Range: -30°C to 85°C

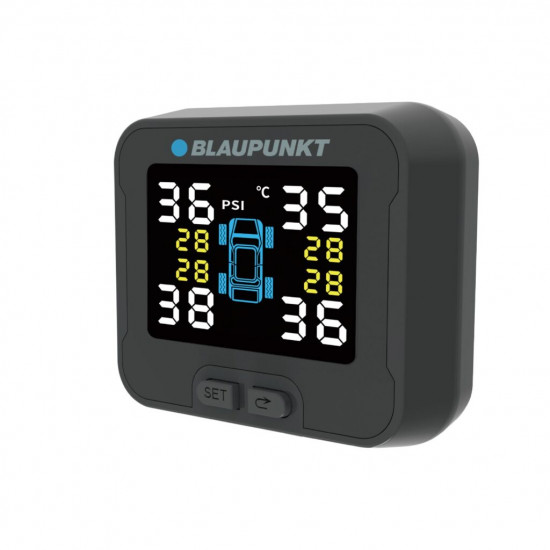

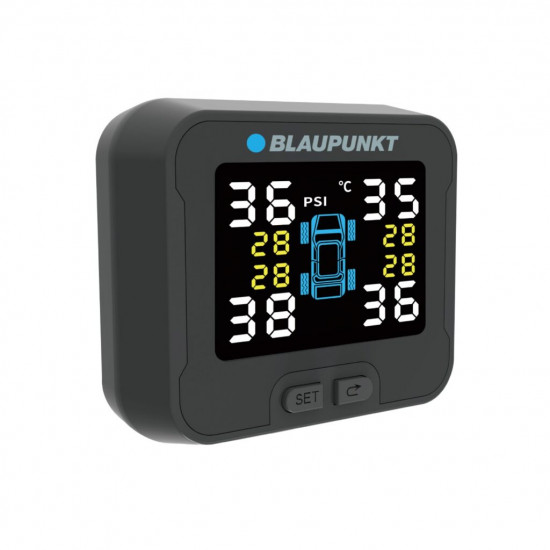

Versatile, Efficient Display

Stay informed with low power draw and flexible power options:

• Operating Voltage:
      • DC5V via USB
      • DC8V–32V via adapter

• Operating Current: <40mA
• Static Current: <15mA



Specifications

Sensor

• Operating Frequency – 433.92 ± 0.03 MHz
• Battery Voltage – DC2.1V–DC 3.3V
• Operating Temperature – -20°C ~ 85°C (External Sensor), -40°C ~ 125°C (Valve Sensor)
• Pressure Range – 0 ~ 8.0 Bar / 0 ~ 116 PSI

Display

• Operating Current – <40mA
• Static Current – <15mA
• Operating Frequency – 433.92 ± 0.05 MHz
• Operating Voltage –
• a) DC5V (USB interface)
• b) DC8V to DC32V through Power adapter
• Operating Temperature – -30-85°C

Precision

• Temperature – ± 3°C
• Pressure – 0.15 Bar/ 2.2 Ps

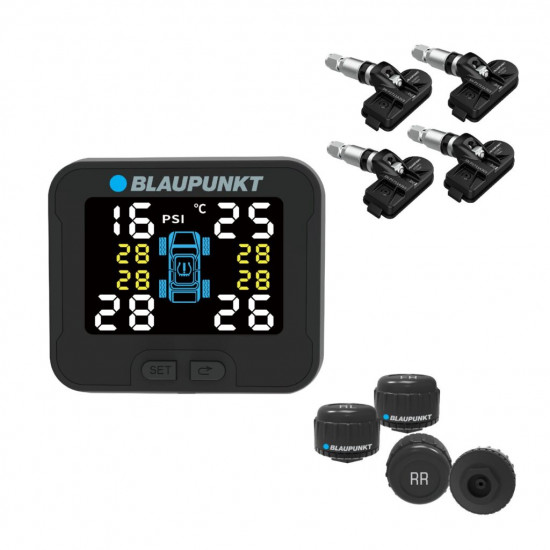

TPMS 2.2V Accessories

• 4x External sensor
• 4x Anti Theft Nut
• 1x Wrench
• 4x Spare O-ring
• 1x Metal Bracket
• 1x Power Adapter with cable


TPMS 2.2V Accessories

• 4x Valve sensors
• 4x Warning label
• 1x Metal Bracket
• 1x Power Adapter with cable
