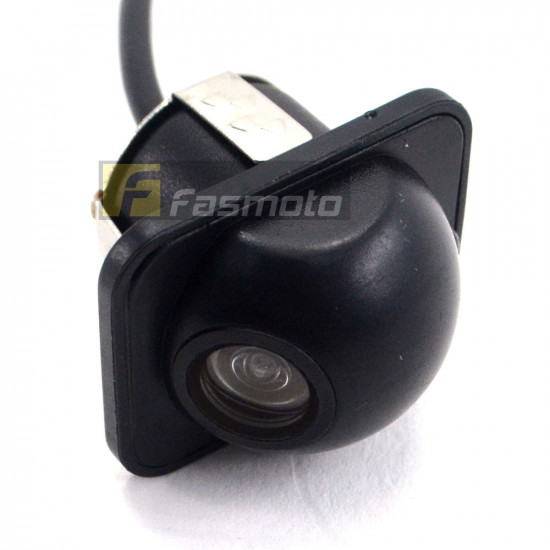

Universal 1661-HD Drill Type Rear Reversing Backup Front Parking Assist Camera

Universal 1661-HD Drill Type Rear Reversing Backup Front Parking Assist Camera with parking guide line indicators

The 1661-HD  backup camera can also be used for the front of the vehicle. With its small size and simple shape, it's one of the favorites as it is not obvious on the outside. This camera comes with built-in guide lines to help indicate distances of objects/persons (Does not indicate exact distance, just as a guide)

Installation of this camera is simple as you only need to drill a hole about 1 inch in diameter with the provided drill bit. This camera uses a standard RCA connection so devices which can accept this lead should be able to be hooked up with no issues.

Features

Parking guide lines (can be disabed)
Mirror image flip (for front or rear use)

Specification

Image : 1089
Lens angle : 170 degrees
TV system : PAL / NTSC
TV lines : 420 TV lines
Effective pixels : 628 (H) * 586(V)
Waterproof rating : IP67 - IP68
Minimum illumination : 0.1 Lux
Power Supply : 12 volts
Power consumption : <350mW
Optonal : Mirror / Forward image, Parking reference lines
Operating Temperature : -30 degrees celcius to 60 degrees celcius
Temperature Storage : -40 degrees celcius to 80 degrees celcius

Package Contents

Camera : 1 unit
5 Metre long RCA Cable : 1 unit
Power Connector : 1 unit
Drill Bit: 2
User manual
