SONY XAV-AX4000 6.95" (17.6cm) Wireless Apple CarPlay Android Auto Bluetooth Double DIN head unit

Specifications

Size & Weight

DIMENSIONS (W X H X D) : 178 x 100 x 132 mm

WEIGHT : 1.0 kg

General Features

OUTPUT POWER : 55W x4

PRE OUT : 3 Pre (Front LR / Rear LR / Sub)

REAR VIEW CAMERA IN : Rear

USB : Yes (Type-C x 1, REAR)

FIRMWARE UPGRADABILITY : Yes

TIME ALIGNMENT : Yes

EQUALIZER : 14-band Equalizer

Connectivity

BLUETOOTH® : Yes

Tuner Features

PRESET : FM18/AM12

AUTO MEMORY : BTM

RDS / EON : Yes (RBDS)

Bluetooth Profile

HFP : Yes (1.7.1)

A2DP : Yes (1.3.1)

AVRCP : Yes (1.6.1)

PBAP : Yes (1.1)

Bluetooth Features

SPEED DIAL : Yes (6 memories)

RECENT CALLS (# OF) : Yes

LAST DIALED CALL : Yes(select from the dialed call history)

PHONEBOOK ACCESS VIA PBAP : Yes

ALPHABETICAL PHONEBOOK SORTING : Yes

RING VOLUME LEVEL CONTROL : Yes

CALL VOLUME LEVEL CONTROL : Yes

EXTERNAL MICROPHONE : Supplied

BATTERY REMINDER : Yes

SIGNAL STRENGTH INDICATION : Yes

Bluetooth Audio Features

AUDIO CODEC (BLUETOOTH AUDIO) : SBC/AAC/LDAC

PAUSE (BLUETOOTH AUDIO) : Yes

CUE / REV : Yes

TRACK +/- : Yes

AUDIO LEVEL ADJUSTMENT : Yes (-6dB to +6dB)

REPEAT CONTROL (AUDIO DEVICE SIDE) : Yes

SHUFFLE CONTROL (AUDIO DEVICE SIDE) : Yes

META DATA INDICATION : Yes

Panel Design

KEY ILLUMINATION : Yes (White)

Monitor(AVC)

LCD TYPE : TFT Active Matrix

SCREEN ASPECT : 16 : 9

SCREEN DIAGONAL (INCH / MM) : 6.95 inch

RESOLUTION (DOT) : 800 x 480

DIMMER : Auto/Manual select

BRIGHTNESS : Typ: 600 cd/m2

Display Panel

KEY ILLUMINATION INITIAL : White

DIMMER ADJUST : Yes

User Interface

TOUCH PANEL : Resistive + AG

REMOTE COMMANDER : Yes

PARKING CONTROL : Yes

PARKING LINE ADJUST : Yes

REAR VIEW CAMERA-IN MARKER SETTING : Yes

USB Mass Storage Device Control Feature

USB DEVICE CONTROL (REPEAT) : TRACK/FOLDER/DRIVE

USB DEVICE CONTROL (SHUFFLE) : OFF/FOLDER/DEVICE

USB DEVICE CONTROL (PAUSE) : Yes

USB DEVICE CONTROL (RESUME PLAY) : Yes

USB DEVICE CONTROL (AUDIO CODEC) : MP3/WMA/WAV/AAC/FLAC/ALAC/DSF/DSDIFF

USB DEVICE CONTROL (AUDIO PLAYABLE FILE EXTENSION) : .mp3/.wma/.wav/.m4a/.mp4/.flac/.m4a/.mp4/.dsf/.dff

Multi-Language

MENU : English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Korean/Dutch

CAUTION : English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Korean/Dutch

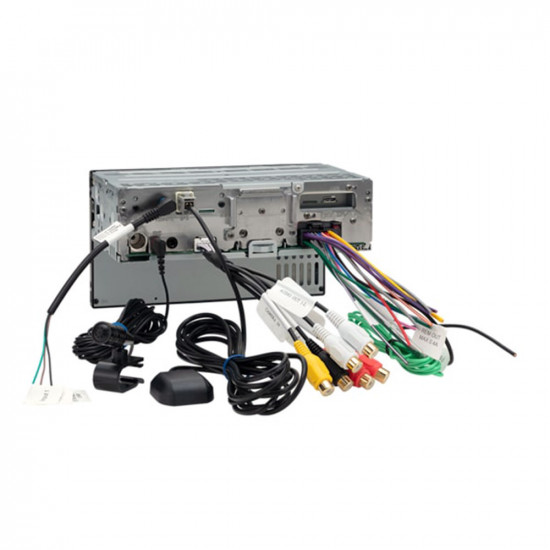

What's In The Box

External Microphone

Remote Commander

Steering Remote Control cable

Power Supply Leads

Connection Cables(Audio/Camera)

USB Extension Cable(Type-C)

GPS Antenna
