More screen, more useable

Enjoy smooth and simple control for every journey, with a responsive 17.6 cm diagonal (6.95 inch) touchscreen display that wakes up two and a half times faster than previous models, and support for leading smartphone interfaces.

Use with your mobile
Connect your compatible Apple or Android smartphone to get directions, stream music and more.

Control at your fingertips
The large, clear touchscreen gives you intuitive control over music playback and smartphone functions.

Quick wake up
With activation two and a half times faster than previous models, you're ready to go right after turning on the ignition.

Smarter driving with intelligent voice control

Apple CarPlay and Android Auto™ makes it easier than ever to navigate, communicate and play music on the road.234 Just connect your smartphone to the XAV-AX3000 to see everything you need on the large touchscreen.

Siri with Apple CarPlay

Easily access the iPhone features you know and love, just by talking to Siri. Music, maps, phone calls, and messages are all under your control.

Voice Control with Android Auto

Use voice commands to dictate messages, take phone calls or get help from Google Maps. You can even control music playback, just by talking.

Your personal navigator

Get directions in real time without ever taking your hands off the wheel. Easily navigate to your destination, or search for nearby stops mid-journey.

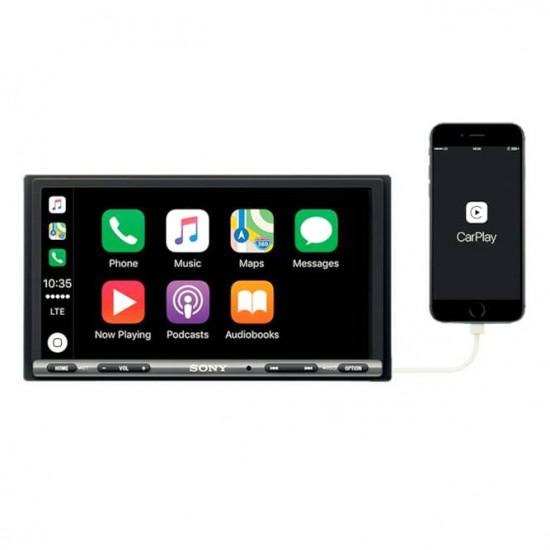

Navigating with Apple CarPlay

Tell Siri where you're going, and it will give you real-time directions as you drive.

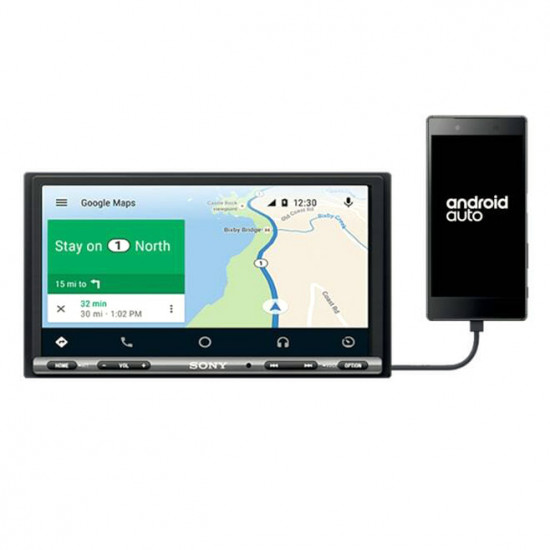

Navigating with Android Auto

Use Google Maps to get directions and traffic updates whenever you need them.

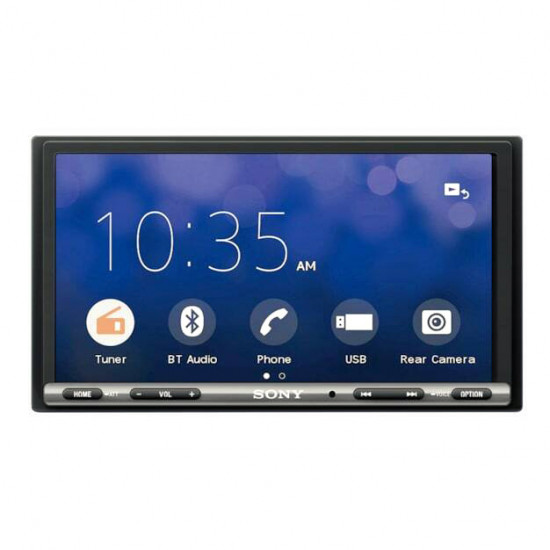

Sleek, responsive touchscreen

Bring up maps, sort through playlists, and make phone calls — all from a sleek 17.6 cm diagonal (6.95 inch) screen. It ensures everything is easy to use, and wakes up two and a half times faster than previous models, so you can get on the road in no time.

Simple button controls

Get instant access to commonly-used features such as volume, source, sound settings and voice control for safe and easy operation on the road.

Dual USB for phone connection and music library

Thanks to dual USB ports, you can hook up storage devices to access your music library while connecting a smartphone for Apple CarPlay and Android Auto.

Hear music your way

Multiple customization options let you adapt the audio experience to your liking. And with the built-in 4 x 55 W amplification, music sounds clear even at high volumes.

Powerful, clear amplification

Advanced signal processing from the 4 x 55 W Dynamic Reality Amp 2 removes interference, so music sounds clear and detailed. Even when you crank up the volume.

Rear view camera ready

Got a rear camera installed? View it on the screen, along with customisable and removable guidelines that help you back in safely.

Easy installation with a compact rear chassis

Despite its double-DIN display, the rear chassis is far smaller than conventional double-DIN units. This makes for much easier installation, and leaves plenty of room for cabling and other accessories in the space behind the display.

SPECIFICATIONS AND FEATURES

Control everything simply on the road, so you can safely focus on driving. Voice control from Apple CarPlay and Android Auto™ helps with directions, calls and more. The large, clear touchscreen gives you intuitive control over your music and smartphone functions.

• Voice control with Apple Car Play and Android Auto™
• Rear view camera ready for easy parking
• EXTRABASS adds low-end power
  Create virtual speakers on your dashboard with the Dynamic Stage Organizer
• Ergonomic key terminal for easy operation
•

Size & Weight

DIMENSIONS (W X H X D) :178x100x139mm
WEIGHT : 1.1kg

General Features

OUTPUT POWER : 55W
PRE OUT : 3Pre Out
SUB OUT : Yes
ZONE X ZONE : No
AUX-IN : No
REAR VIEW CAMERA IN : Yes
USB : Yes (Rear x1)
NAVIGATION : Android Auto™
FIRMWARE UPGRADABILITY : Yes
VIDEO OUT : No
TIME ALIGNMENT : No
DSO (DYNAMIC STAGE ORGANIZER) : Yes
EQUALIZER : 10Band Graphic Equalizer
EXTRA BASS : Yes (Off / 1 / 2)
ALBUM ARTWORK INDICATION : Yes

Connectivity

BLUETOOTH® : Yes
NFC : No

Tuner Features

PRESET : FM18 / AM12
AUTO MEMORY : BTM
RDS / EON : Yes (RDS)

Bluetooth Profile

HFP 1.5 : Yes (1.6)
A2DP : Yes (1.3)
OPP : No
SPP : No
AVRCP : Yes (1.3)
PBAP : Yes (1.1)

Bluetooth Feature

SPEED DIAL : Yes (6 memories)
RECENT CALLS (# OF) : Yes
LAST DIALED CALL : YES (select from the dialed call history)
PHONEBOOK (BUILT IN) : No
PHONEBOOK ACCESS VIA PBAP : Yes
ALPHABETICAL PHONEBOOK SORTING : Yes
AUTO ANSWER : No
RING VOLUME LEVEL CONTROL : Yes
CALL VOLUME LEVEL CONTROL : Yes
EXTERNAL MICROPHONE : Supplied
BATTERY REMINDER : Yes
SIGNAL STRENGTH INDICATION : Yes

Bluetooth Audio Feature

AUDIO CODEC (BLUETOOTH AUDIO) : SBC / AAC
PAUSE (BLUETOOTH AUDIO) : Yes
CUE / REV : Yes
TRACK +/- : Yes
GROUP (FOLDER) +/- : Yes
AUDIO LEVEL ADJUSTMENT : Yes (-8 dB to +18 dB)
REPEAT CONTROL (AUDIO DEVICE SIDE) : Yes
SHUFFLE CONTROL (AUDIO DEVICE SIDE) : Yes
META DATA INDICATION : Yes

Panel Design

PANEL SURFACE FINISH COLOR : Black
KEY ILLUMINATION : Yes (White)
PANEL DETACHABILITY : No

Monitor(AVC)

LCD TYPE : TFT Active Matrix
SCREEN ASPECT : 17: 9
SCREEN DIAGONAL (INCH / MM) : 6.95 inch
SCREEN SIZE (W X H MM) : 156.6*81.6mm
RESOLUTION (DOT) : 800 x 480
DIMMER : Yes
CONTRAST RATIO : 600
BRIGHTNESS : 500 cd/m2

Display Panel

KEY ILLUMINATION INITIAL : Yes (White)
VISUALIZER : No
DIMMER ADJUST : Yes

User Interface

TOUCH PANEL : Yes/Resistive (Not Multi Touch Compatible)
GESTURE COMMAND : Yes
REMOTE COMMANDER : RM-X170
PARKING CONTROL : Yes
ASPECT RATIO SELECT : Yes
REAR VIEW : Yes

USB Mass Storage Device Control Feature

USB DEVICE CONTROL (REPEAT) : TRACK / FOLDER / DRIVE
USB DEVICE CONTROL (SHUFFLE) : OFF / FOLDER / DEVICE
USB DEVICE CONTROL (PAUSE) : Yes
USB DEVICE CONTROL (RESUME PLAY) : Yes
USB DEVICE CONTROL (AUDIO CODEC) : PCM / MP3 / WMA / AAC / FLAC,
USB DEVICE CONTROL (AUDIO PLAYABLE FILE EXTENSION) : WAV / .MP3 / .WMA / .m4a / .flac,
USB DEVICE CONTROL (VIDEO CODEC) : MPEG4-SP / AVC (H.264 Baseline) / WMV / FLV / MKV / XviD
USB DEVICE CONTROL (VIDEO PLAYABLE FILE EXTENSION) : .mp4 / .wmv / .mkv

Multi-Language

MENU : English/Spanish/French/Germany/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic

ID3 TAG :English/Spanish/French/Germany/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic

CAUTION : English / Spanish / French / Germany / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabi

What's In The Box

Instruction Manual
